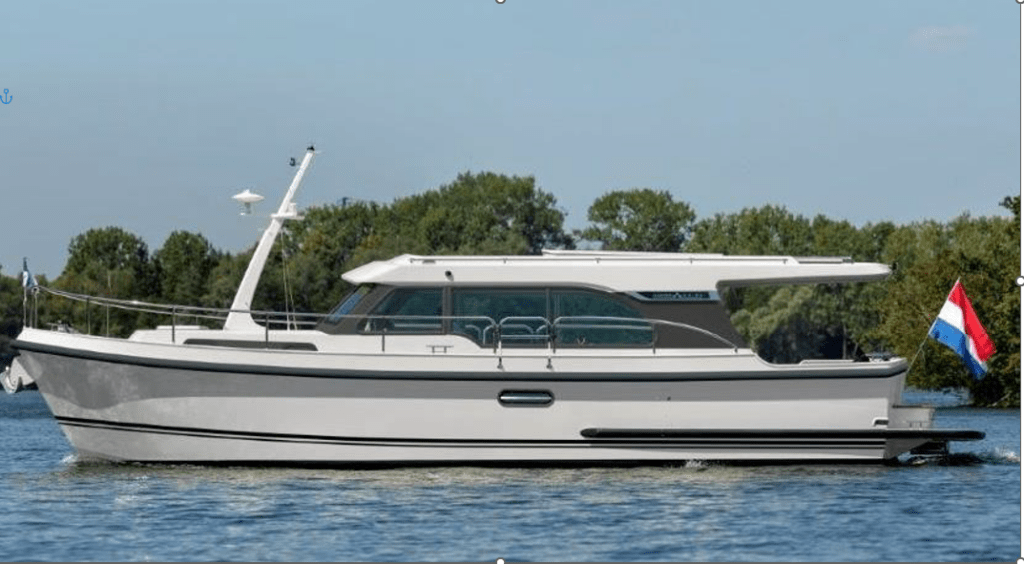

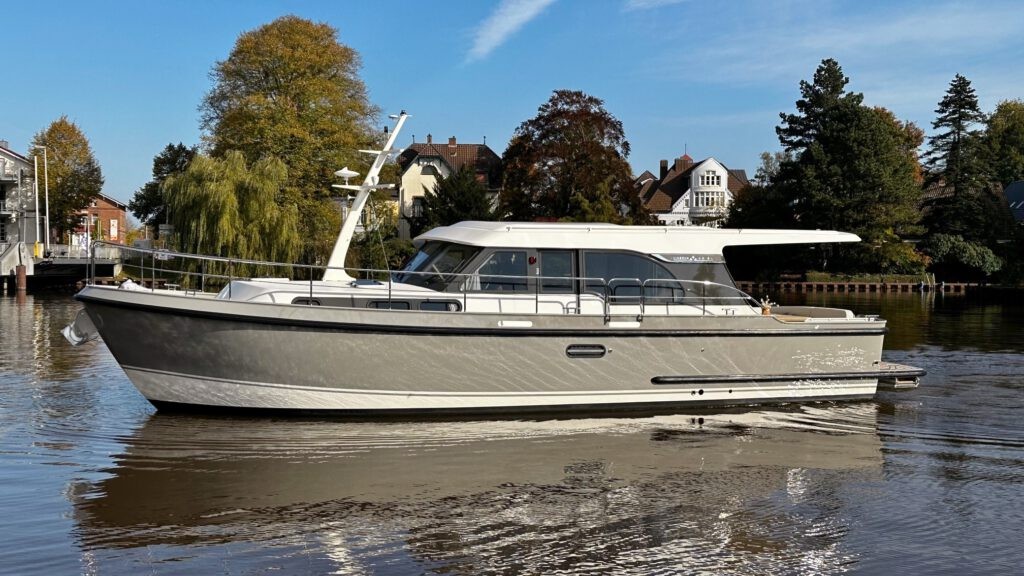

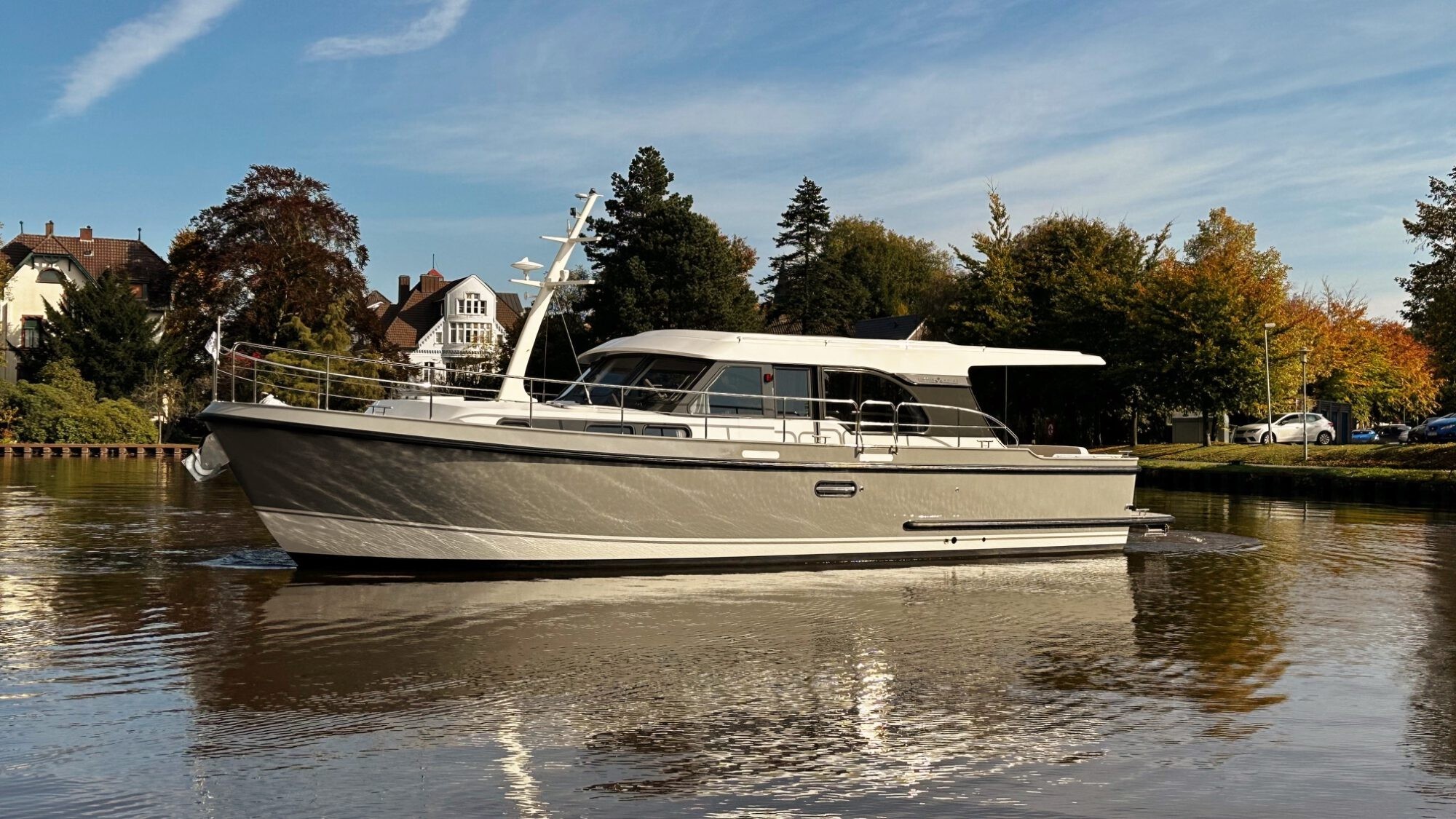

40 SL Sedan – Demonstration yacht

Item Description
BASIC DATA
01010.05 Construction: SPH (Softchine Prestressed Hull)
Ship’s bottom/hull: 6/5 mm.
Decks/Vertical superstructure: 4 mm.
Weight/displacement: 15,500 kg / 15.5 m³
01020.05 Length x width x draught: ± 12.85 x 4.25 x 1.20 m. (1-engine version)
: ± 12.85 x 4.25 x 1.22 m. (2-engine version)
Length above deck: ± 12.05 m.
Length waterline: ± 10.80 m.
Min. clearance height: ± 2.72 m.
Standing height VK/saloon: ± 1.97/2.01 m.
01030.03 CE classification: B (sea)
Maximum recommended number of persons: 10
13010.20 Motorization: 1x 4 cyl. Mercury Diesel, type MD2.0L
ZF 25-H / 2.8 : 1
84 kW (115 hp), 3000 rpm
Alternator: 110A-12V
03040.01 Diesel tank capacity: ± 750 ltr.
Water tank capacity: ± 440 ltr.
Tank capacity black water: ± 300 ltr.
1st KASKO
1.1 EXTERIOR
11015.01 Hull built according to the Linssen Yachts SPH® construction method

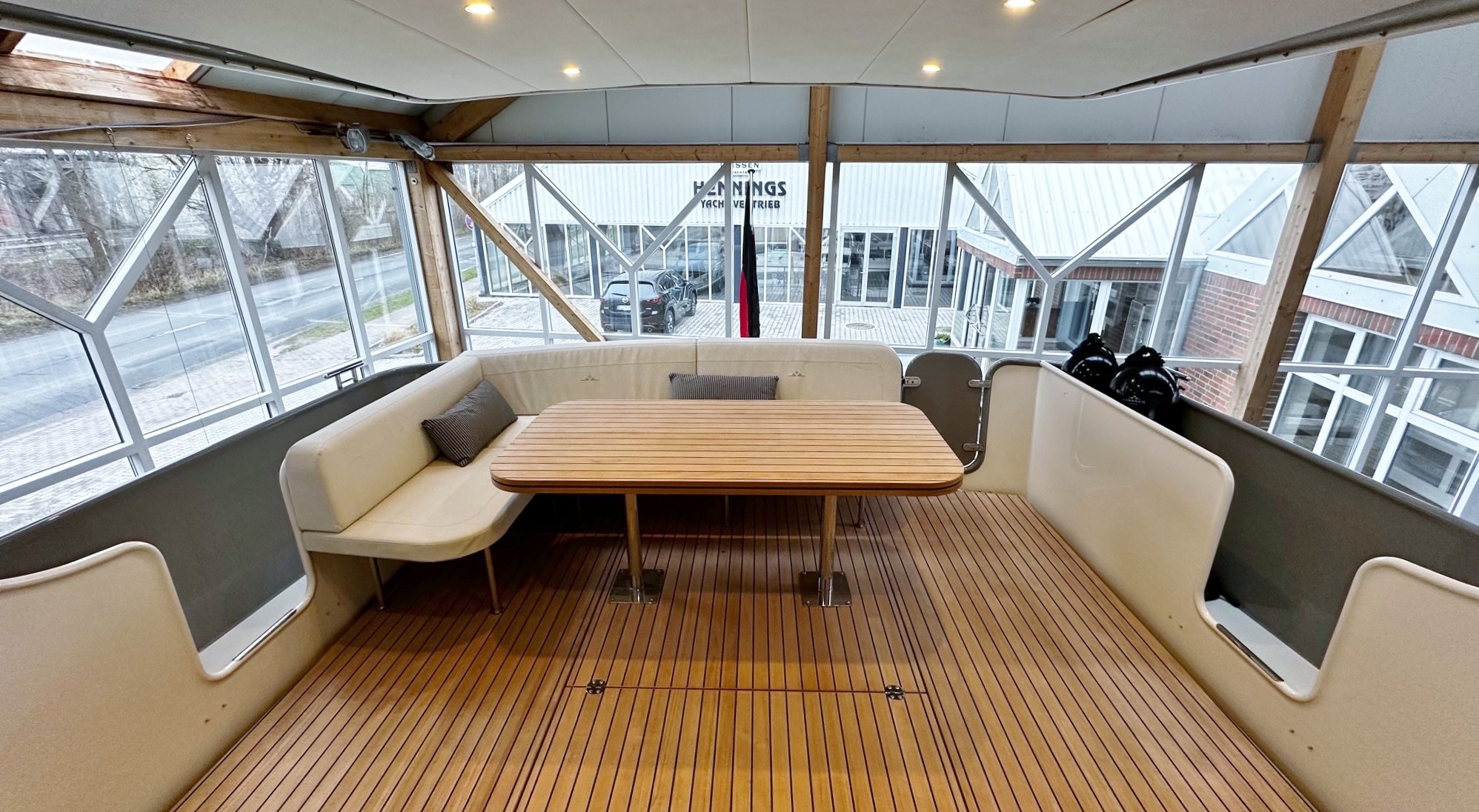

11065.02 Extended cockpit roof Saloon deck wide, insulated and fitted with a ceiling, including a roof.
integrated LED dimmer lighting.
11068.01 Self-draining cockpit with functional channel system
11070.01 Integrated L-shaped bench in the cockpit with teak seating
11080.01 Integrated stern door to the bathing platform
1.2 STAINLESS STEEL
12010.01 Polished stainless steel guard rail
12020.01 Side entrances with stainless steel chains?
12030.01 Opening in the bow railing can be closed with stainless steel chain
12050.02 Original Linssen Design stainless steel cleats (6x)
12055.01 Original Linssen Design stainless steel cleats on bathing platform (2x)
12080.01 Stainless steel handrails on the saloon deck
12120.01 Seat with storage space and solid teak cover on bathing platform

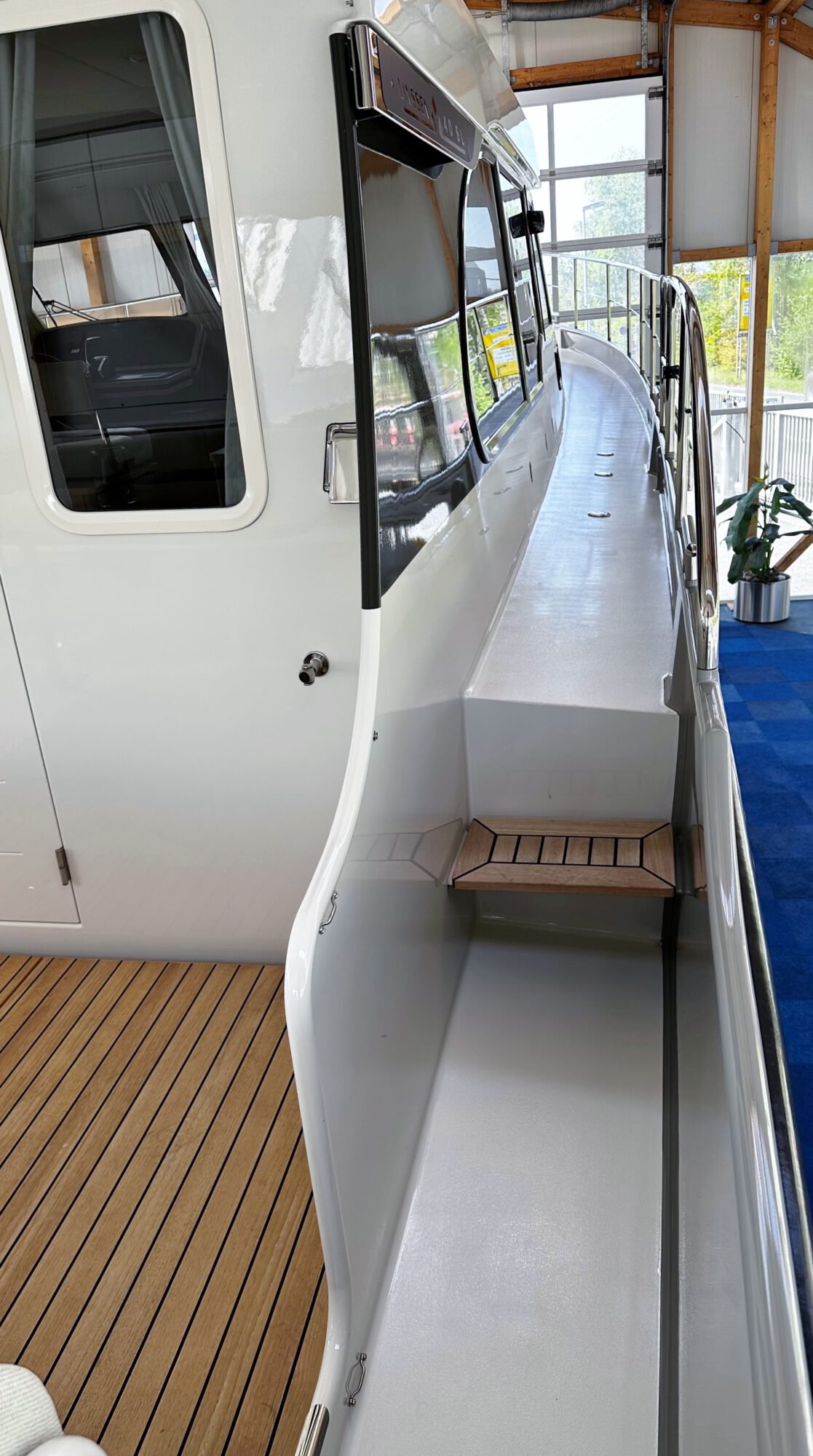

12125.01 Teak step in gangways
12130.01 Folding bathing ladder made of polished stainless steel on the bathing platform, with solid teak steps
and anti-slip profiles
12145.02 Solid lacquered stainless steel bathing platform with solid teak parts including Heavy Duty
“Linssen” plastic bumper strip around the bathing platform up to 1/3 of the length of the boat

1.3 TECHNOLOGY
13030.01 Linssen DUAL CROSS motor foundation
13040.01 Linssen FIS floor support system (Floor Integrated System®) for integral protected mounting
of cables and lines.
13061.03 Preparation in the hull for retrofitting a rear bolt system incl.
Main power cable
13080.03 Preparation for retrofitting a deck wash pump
13110.01 Outdoor shower on bathing platform with hot/cold water mixer tap
13150.02 Integrated bow fitting with fixed anchor roller in stainless steel Anchor bracket?
13240.01 Self-draining seawater-resistant anchor chain container
13270.02 Preparations for retrofitting a Linssen tender lift to the bathing platform
13280.01 Set of waterproof loudspeakers for radio in cockpit
2. COLOR SYSTEM
2.1 COLOR SYSTEM & DECK PROCESSING
21010.01 Linssen two-component Exterior Coating System
21020.01 Saloon and cabin deck with anti-slip coating
21030.01 Foredeck and gangways with anti-slip coating
21060.01 Anti-fouling, environmentally friendly antifouling on underwater hull, color black
21070.01 Particularly easy-care two-component surface sealant in the engine room?
21090.25 Original Linssen SL color scheme:
Superstructure and hull: Egg Shell White
Water pass: SL Bow-Up design, black
Antifouling: Black
Bumper strip: Black
Tarpaulin color: Sunbrella Marine Steel
Glass saloon window/ventilation escape hatch: “Smoke grey” tinted
2.2 TEAKDECK
22030.01 Teak floor in the cockpit
3. MACHINE ROOM
3.1 TECHNOLOGY
31010.23 Linssen Yachts propeller shaft system “hydrolubricated”
31020.21 Connection between engine/shaft by homokinetic coupling and thrust bearing
31025.21 Special low-noise propeller
31032.06 Electric bow thruster Side Power 24V/120 Kgf (6.4 kW / 8.55 HP) incl. 2x
additional maintenance-free starting mains batteries 170Ah.
31070.05 Electronic engine control 1 lever at the helm
31090.01 Hydraulic steering
31093.02 Stainless steel steering wheel with teak tires at the inside steering position
31120.01 Emergency steering on the steering gear?
31150.05 Centrally positioned fuel tank with inspection/cleaning opening including fuel tank tank and fuel tank cleaning system. Level gauge ±
750 L.
31160.03 Magnetic level gauge in fuel tank for direct volume reading
31170.05 Separate second (1x per engine) coarse fuel filter with water separator
31210.01 Fuel supply to engine lockable from saloon bench

31240.05 Linssen Compartment Controlled Heating with separate day/night function consisting of 1x
5.5 kW hot air heating for saloon/pantry with control in the saloon and 1x 4 kW for
VK/toilet and guest cabin with control in the VK. In guest cabin/toilet lockable
Outlets
31310.01 Engine room lighting with switch and indicator light in main switch panel
31330.01 Entrance to engine room via stairs next to engine
31700.03 Automatic fire extinguishing installation in engine room?
31750.01 Soundproofing package consisting of a noise-absorbing and a sound-deadening
package
3.2 ONBOARD WATER
32010.02 Automatic on-board water pressure system, including solid plastic on-board water tanks with
inspection/cleaning opening (± 440 ltr.), incl. Analog level indication in the
switch panel
32020.01 2x automatic water pump including expansion tank for on-board water system.
32050.04 Water heater, boiler 60 l
32060.01 230 V / 800W heating element mounted in boiler
32080.03 Black water tank installation with “Dockside Discharge” suction nozzle in gangway, ± 300 L.
including analog level indication
32095.01 All gray water drains (sink and shower drain) directly outboard.
Drain pump(s) shower(s) fitted with time relay.
32110.02 Black water pump for “direct discharge”
32180.02 Electric bilge pump in engine room, with float switch for warning system, manual
switching. Bilge pump capacity: 100L/min.
32200.01 Additional loose electric bilge pump equipped with drain hose and
power supply cable
3.3 ELECTRICAL & ELECTRONICS

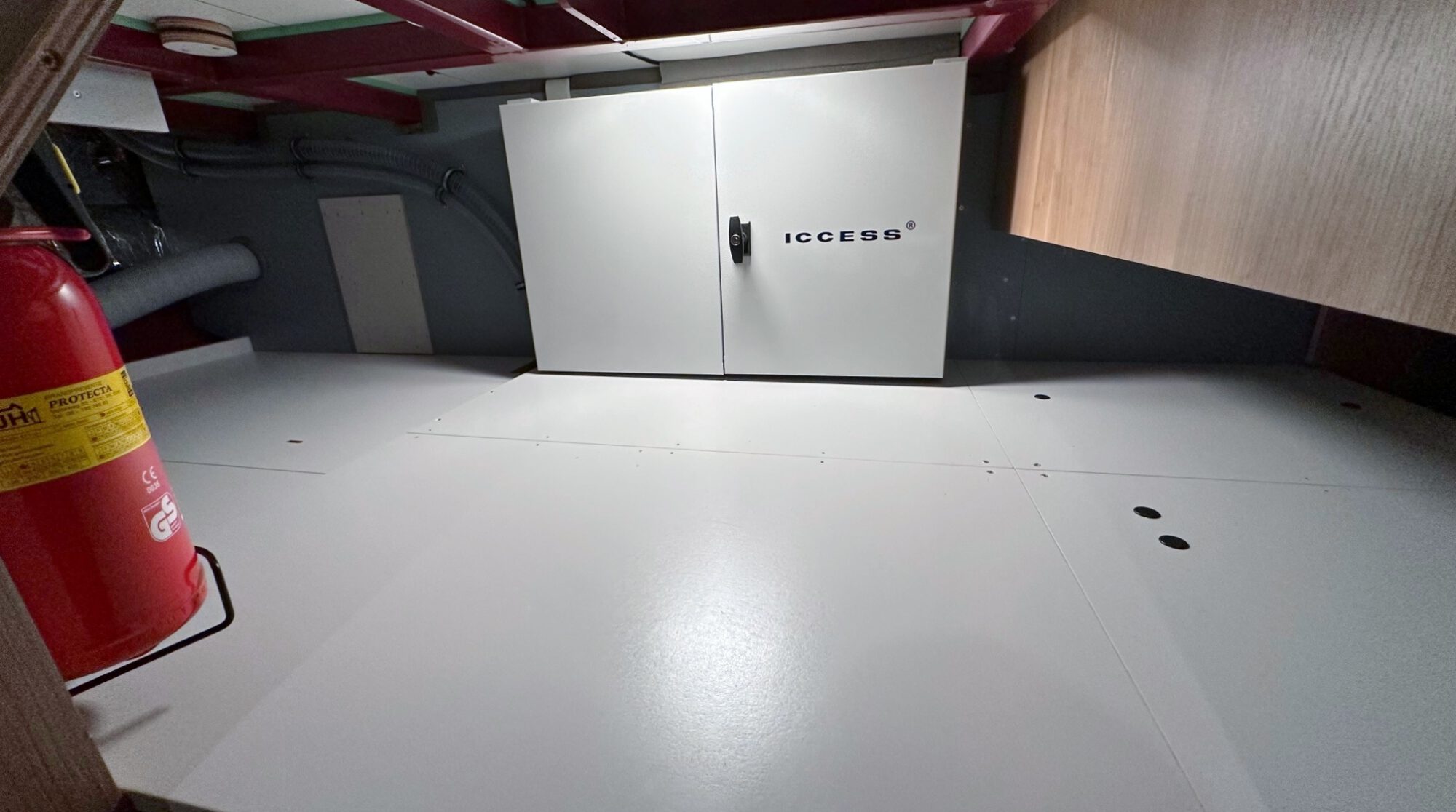

33022.01 Linssen Yachts ICCESS main control panels, 1x in the saloon and 1x in the helm station, for
operation of important functions and reading out fill levels
33030.01 230V. / 16A shore power connection with automatic fuses, RCD switch, indicator lights
and shore power cable, 25 m long
33050.21 Shore connection with galvanic isolator for optimum separation between on-board power supply and
shore power supply
33082.03 On-board power supply 12 V. with 3 maintenance-free “Super Cycle” AGM on-board batteries 170 Ah.
33180.01 Starting mains 12 V with 1 maintenance-free “Super Cycle” AGM 170 Ah.
33230.03 Extra charger for bow and stern thruster group
33271.03 Automatic battery charger/converter type Victron Quattro 12/3000 with battery monitor. The
charger has a maximum charging current of 120A, the maximum output power of the
inverter is 3000W.
3.4 INSTRUMENTS & NAVIGATION

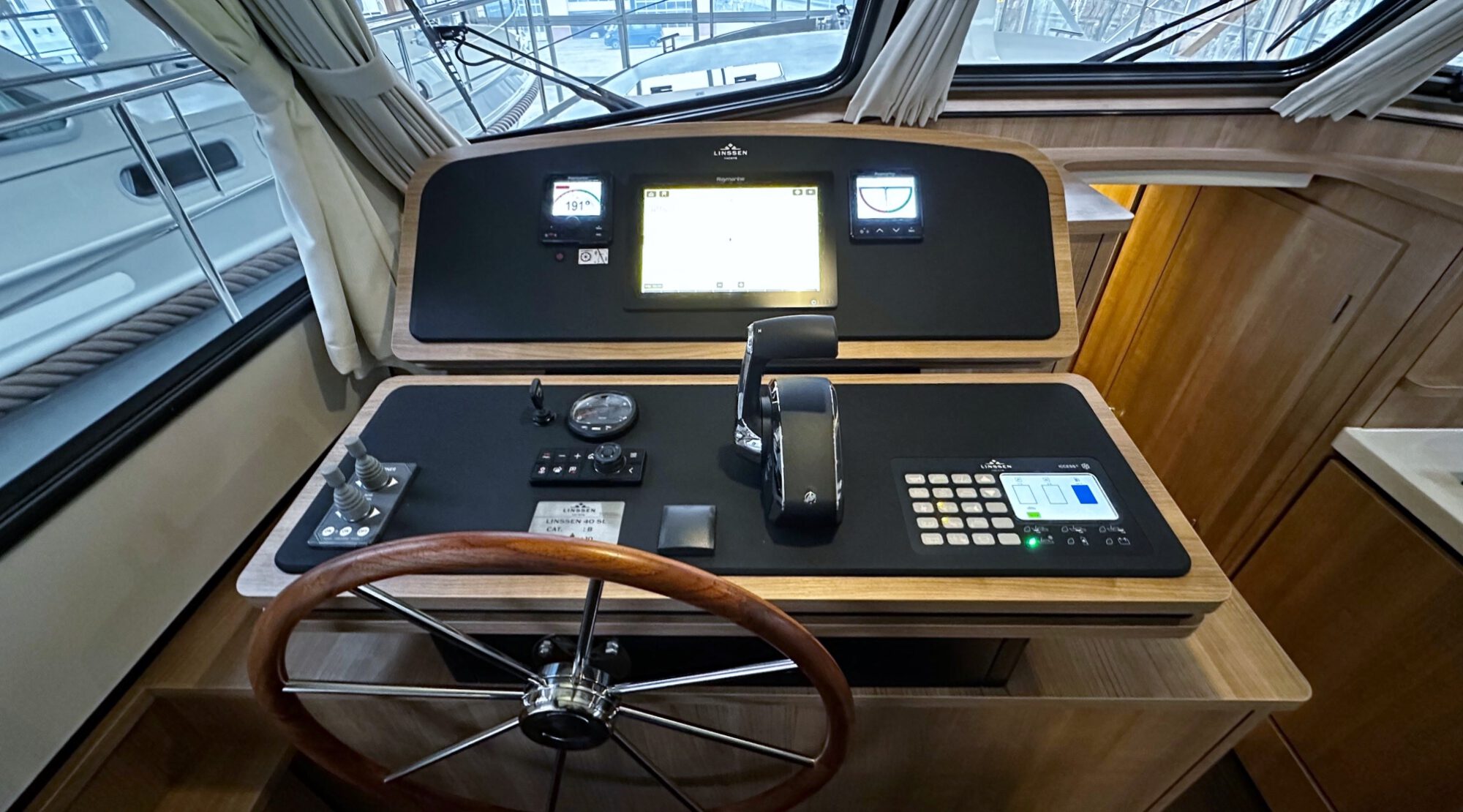

34010.21 Engine instrument panel with rev counter, voltmeter with alarm, temperature gauge with
Alarm, oil pressure gauge with alarm, start lock and operating hours counter
34030.02 Compressed air horn with operation at the control stand
34050.02 DHI-approved LED navigation lighting: SB and BB side on body, stern light, top light
in the mast and anchor lighting
34070.01 Spare cable compass / windset

3.4.1 NAVIGATION EQUIPMENT
34080.14 Raymarine i70S multifunction instrument with readout of depth, log and
outside water temperature at the helm
3.5 EXTERIEUR RUMPF EQUIPMENT
35010.00 Magnesium or zinc anodes (depending on the sailing area)?
35020.01 Original all-round plastic Linssen bumper strip, finished with round end caps
on transom
35040.01 Ship’s name on bow and stern. Home port and registration number at the stern in RAL7022.
Font bow; P22 Lucilee Pro Regular. Font stern; Handel Gothic D medium.
35081.23 Manual anchor winch with integrated “Heavy Duty” stainless steel anchor roller and Linssen patent
anchor bracket including 30m. 8mm anchor chain and 20 kg. Bruce anchor.
3.7 EQUIPMENT EXTERIOR INSTALLATION
37030.02 Robust windshield wiper installation saloon. Position center and BB side
37060.02 Windscreen spray installation saloon for both windscreen wipers incl. wipe/wash function
37070.04 Original Linssen Design mast with two frames, powder-coated in body color
37075.02 Stainless steel mast shrouds with “quick release”
37182.01 Engine compartment ventilation designed with sporty stainless steel Linssen Design “Sport Luxury” logo
37210.01 Cockpit hatch with stainless steel lock and gas pressure spring
37271.11 Entrance doors painted in body color

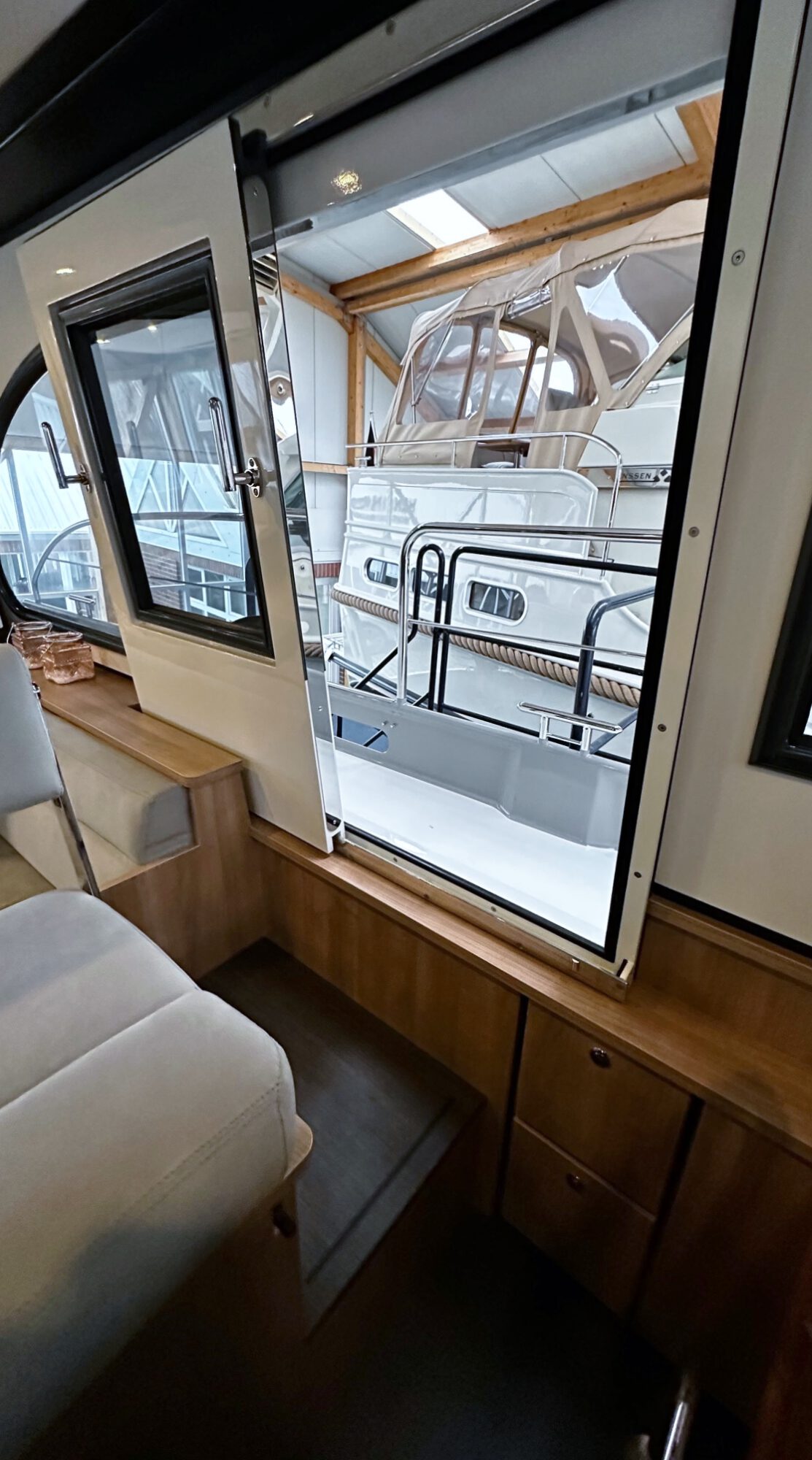

37272.11 “Linssen slide and pop-out-door” (LSP), watertight sliding door in saloon on BB side
painted in body color with special sealing developed by Linssen using Lip-Seal
3.8 WINDOWS
38011.41 Windows in saloon made of anodized aluminium profiles, color grey, with tinted Sekurit
safety glass, tinted “Smoke grey”. Front window in blank glass.
38040.32 Hinged window in the front of the saloon, profile grey, in blank glass, on the SB side
38300.36 Portholes, hinged, with blank acrylic in the forward cabin (6x), profile color grey
38401.11 Aluminum ventilation/escape hatch, profile in body color with “Smoke Grey” tinted glass in
of the VK
38411.11 2x aluminum ventilation/escape hatch, profile in body color with “Smoke Grey” tinted glass
in the mid-cabin and toilet room
4. INTERIOR
GENERAL
40010.01 Fine woodwork Linssen panels FPS® (Floating Panel System, Patented)
40020.03 Interior made of high-quality okoumé base with cherry finish
40030.02 Ceiling paneling in elegant vinyl finish panels
40040.01 Original Linssen maintenance-free ship’s floor, wengé color. Hatches in passageway to VK with
hinges.
40050.02 Fittings in all rooms made of high-gloss stainless steel
40060.02 Push-button catches for cupboard doors in high-gloss stainless steel
4.1 LIGHT
31740.00 Cockpit with wooden floor amidships against the engine room bulkhead

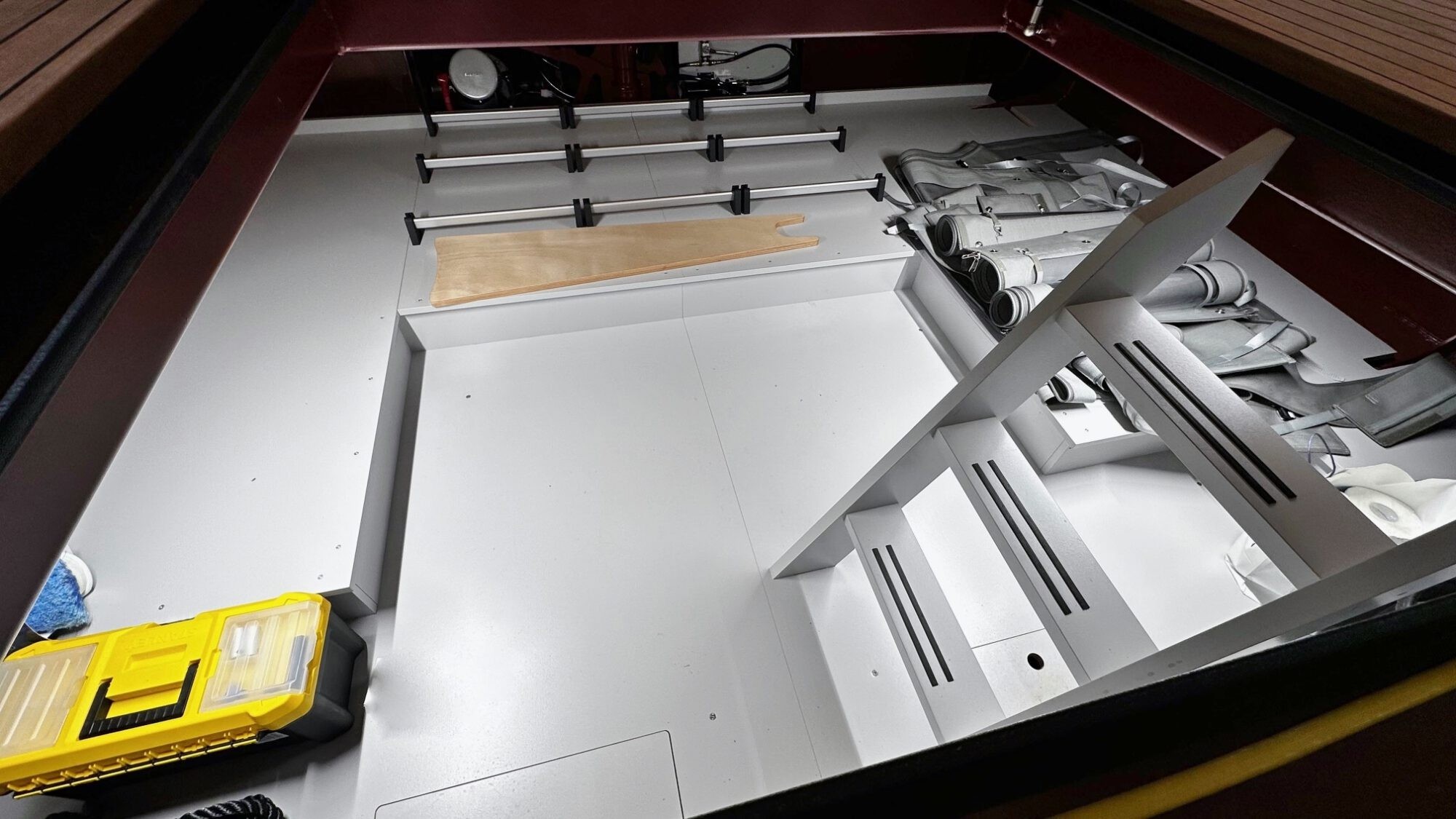

31740.01 Access to storage space in the cockpit via stairs

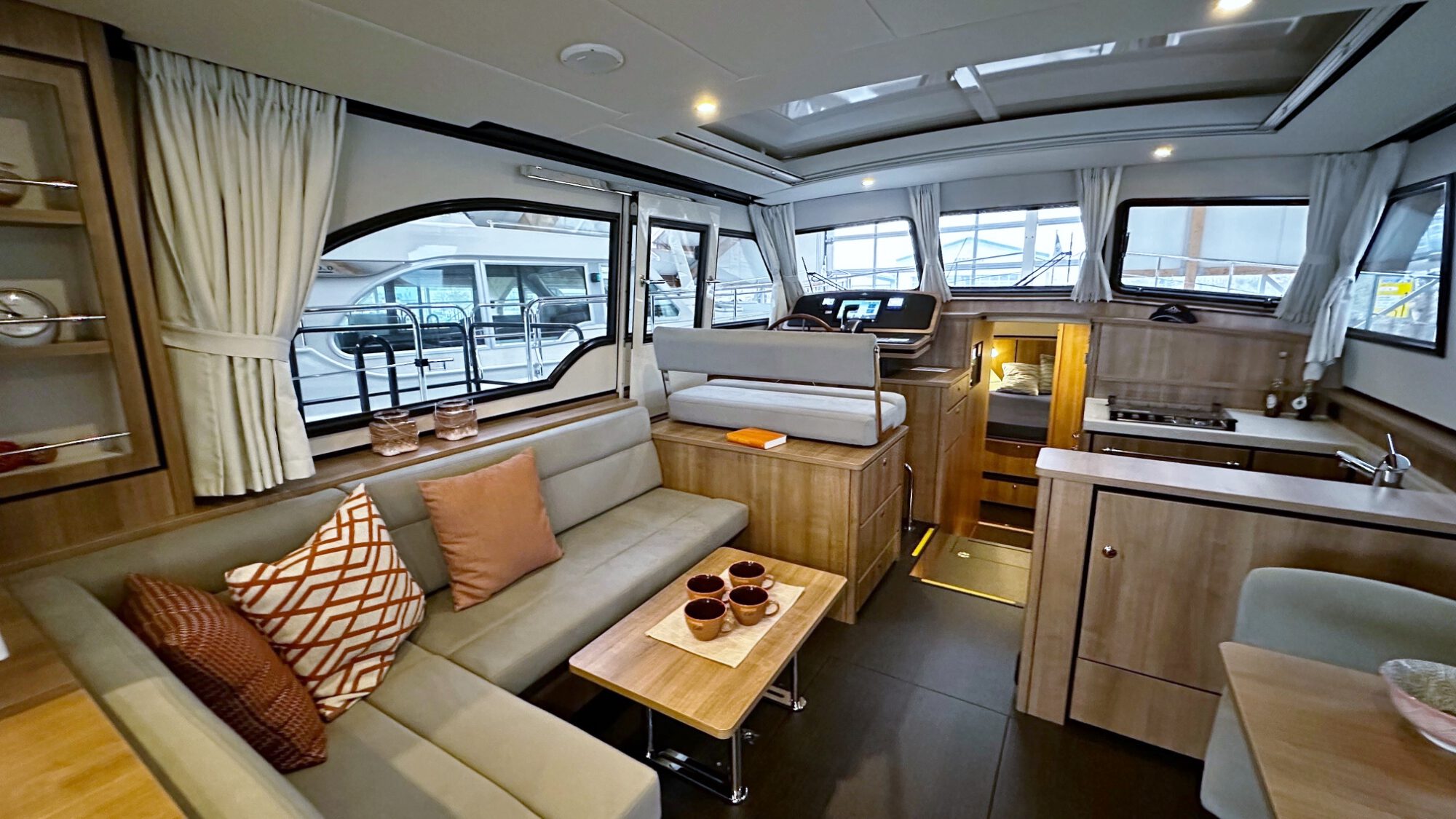

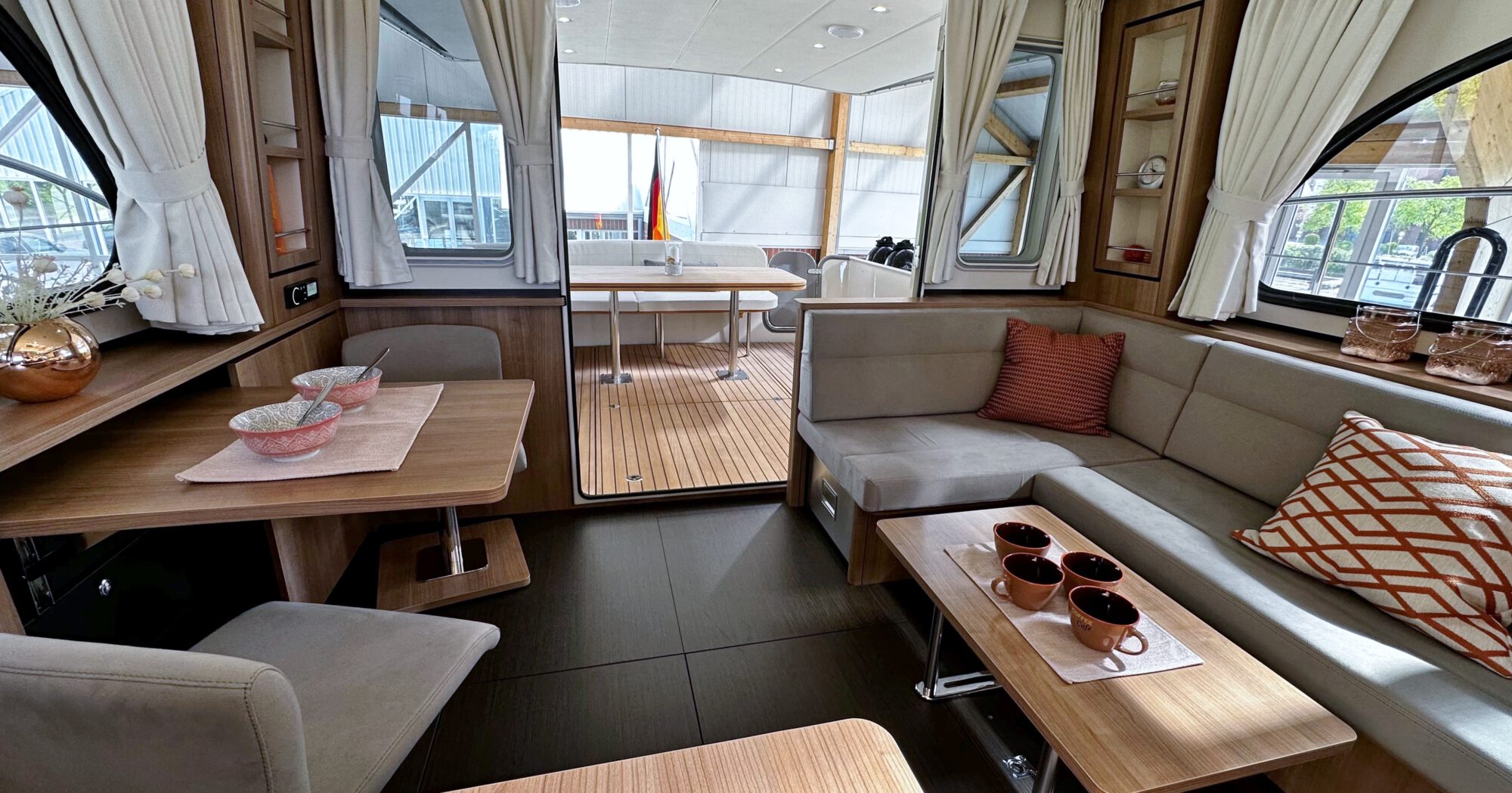

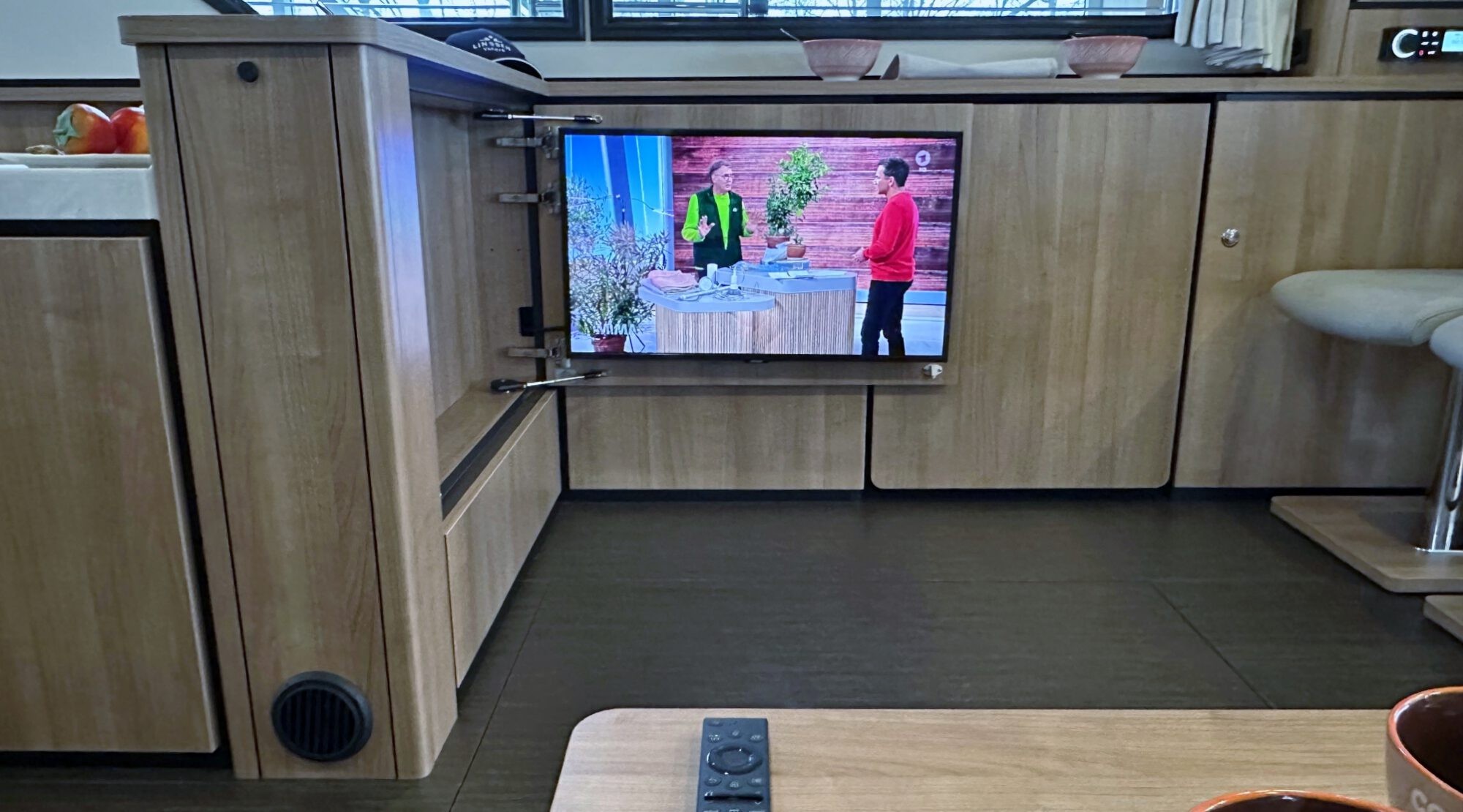

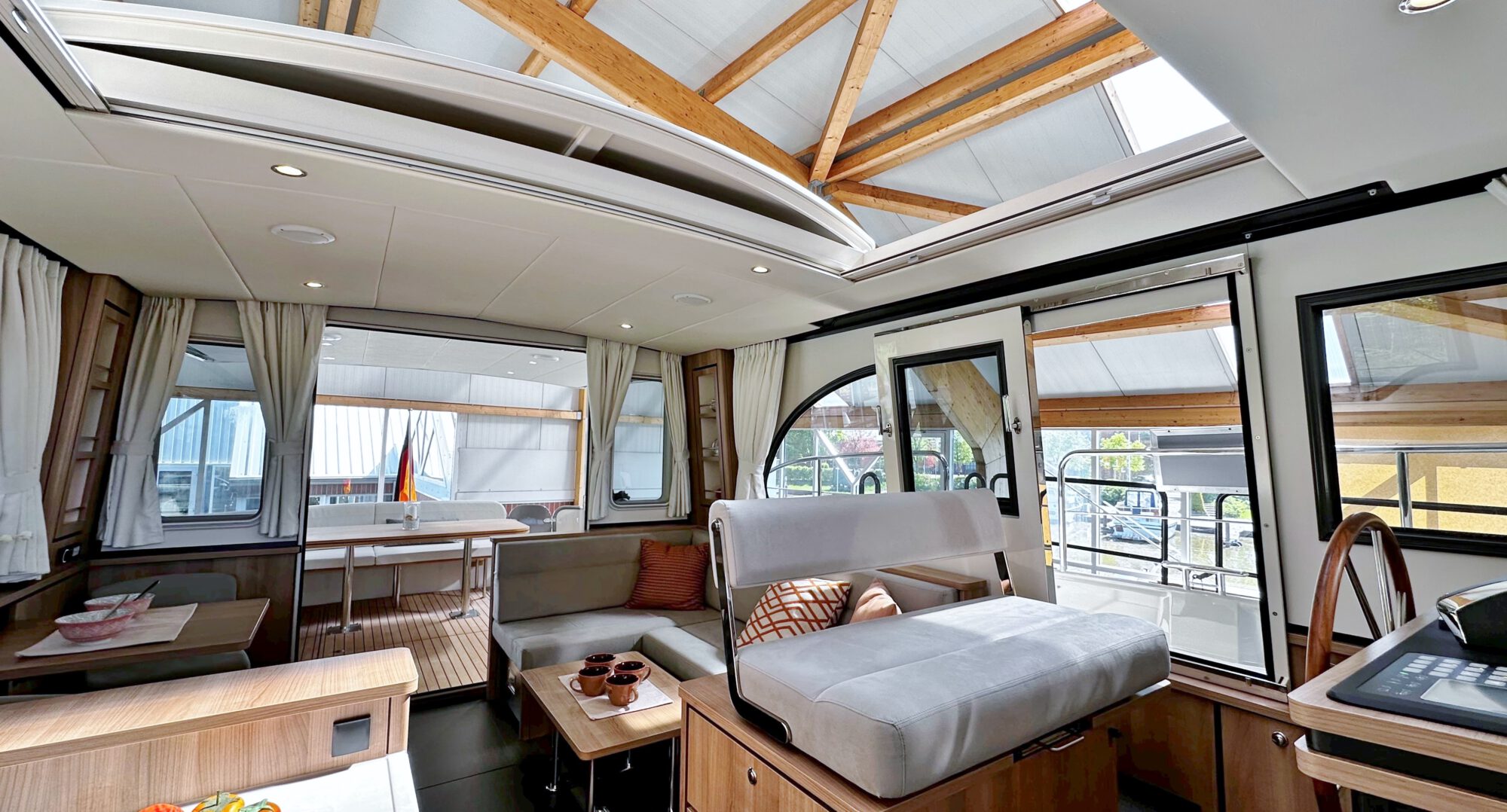

4.2 SALON & PANTRY

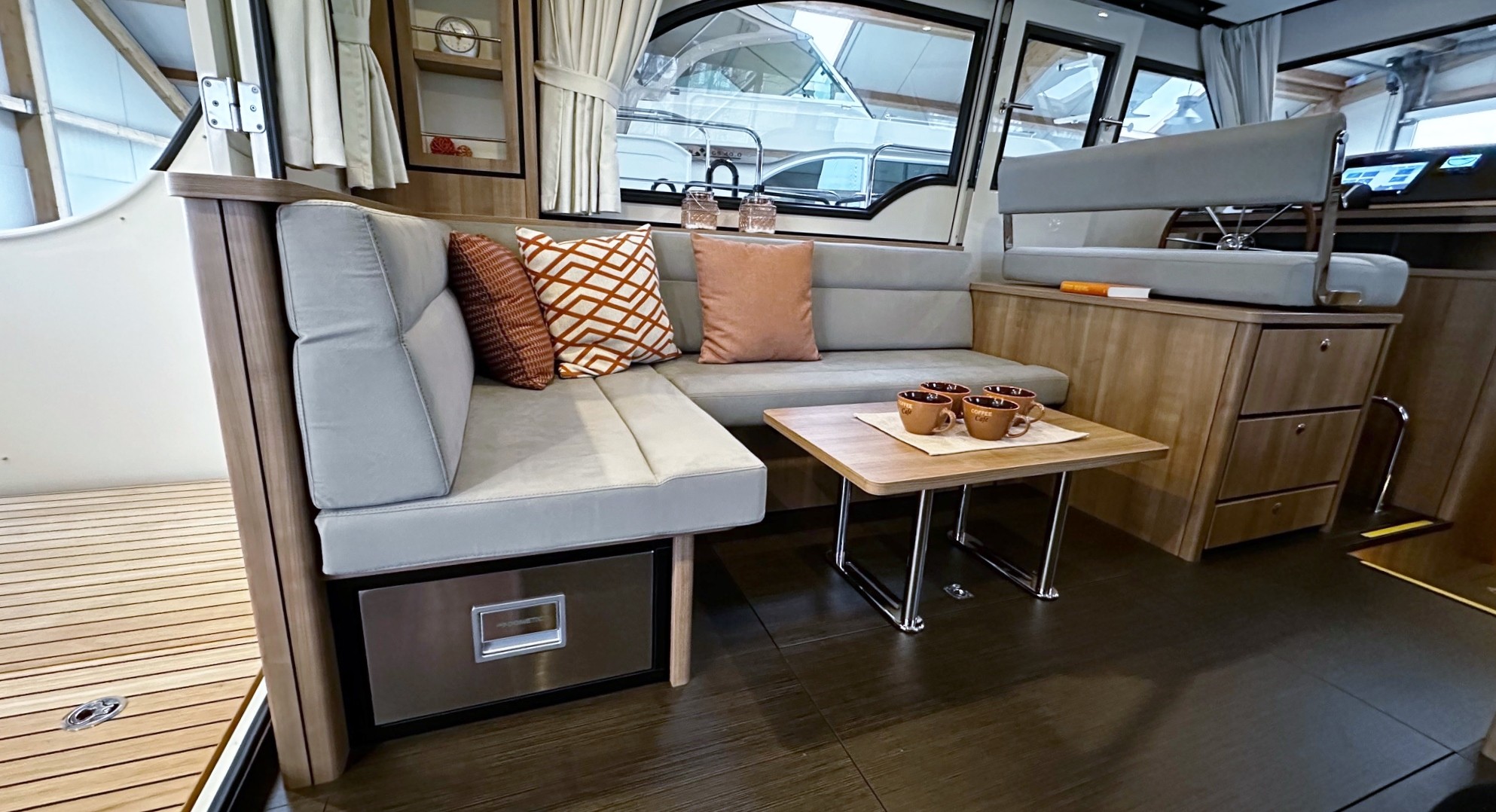

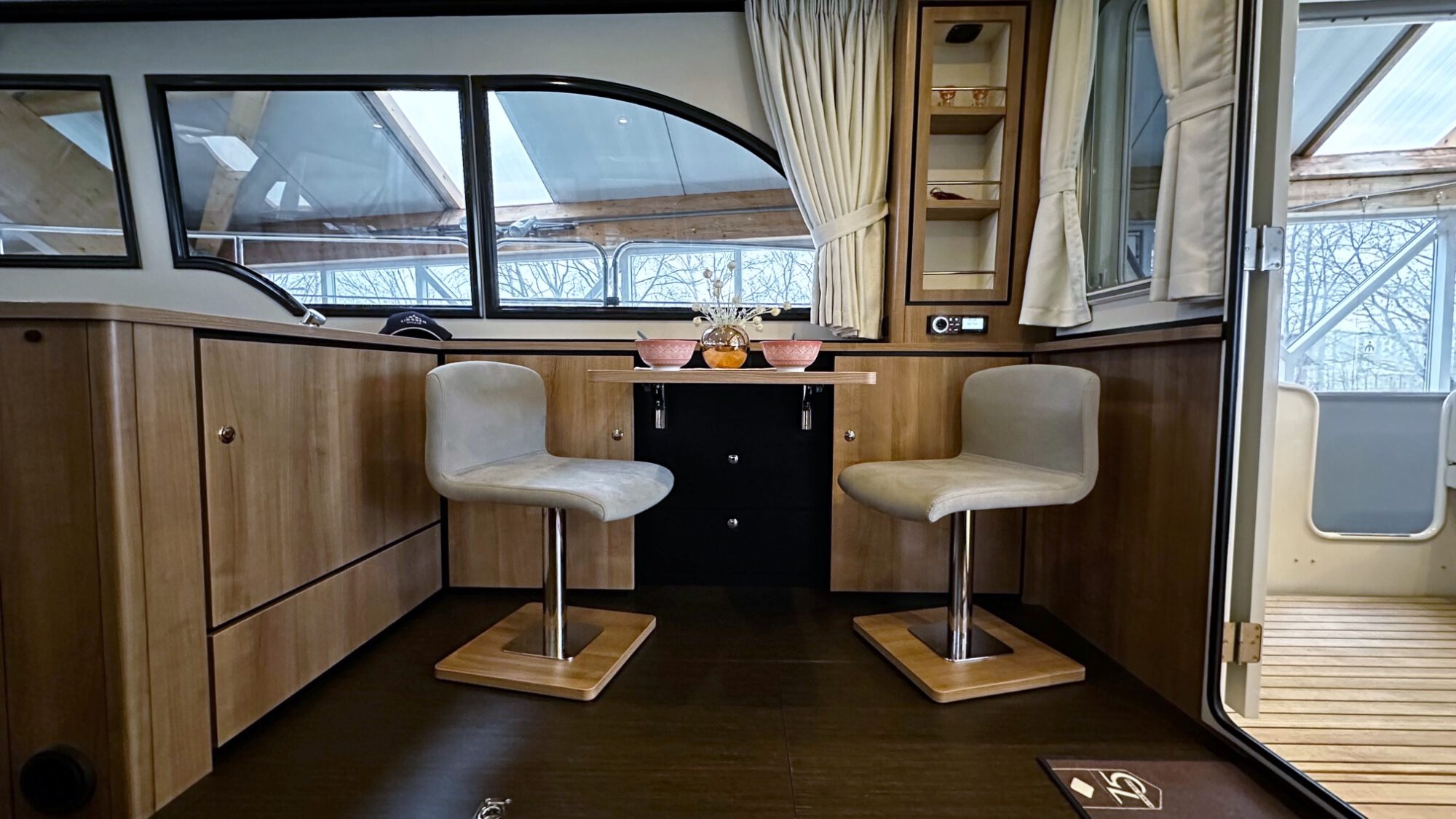

42021.00 Comfortable saloon sofa with “Easy Sleep Convert System”, double bed function with integrated
storage space.
42035.03 Elegant coffee table, low model

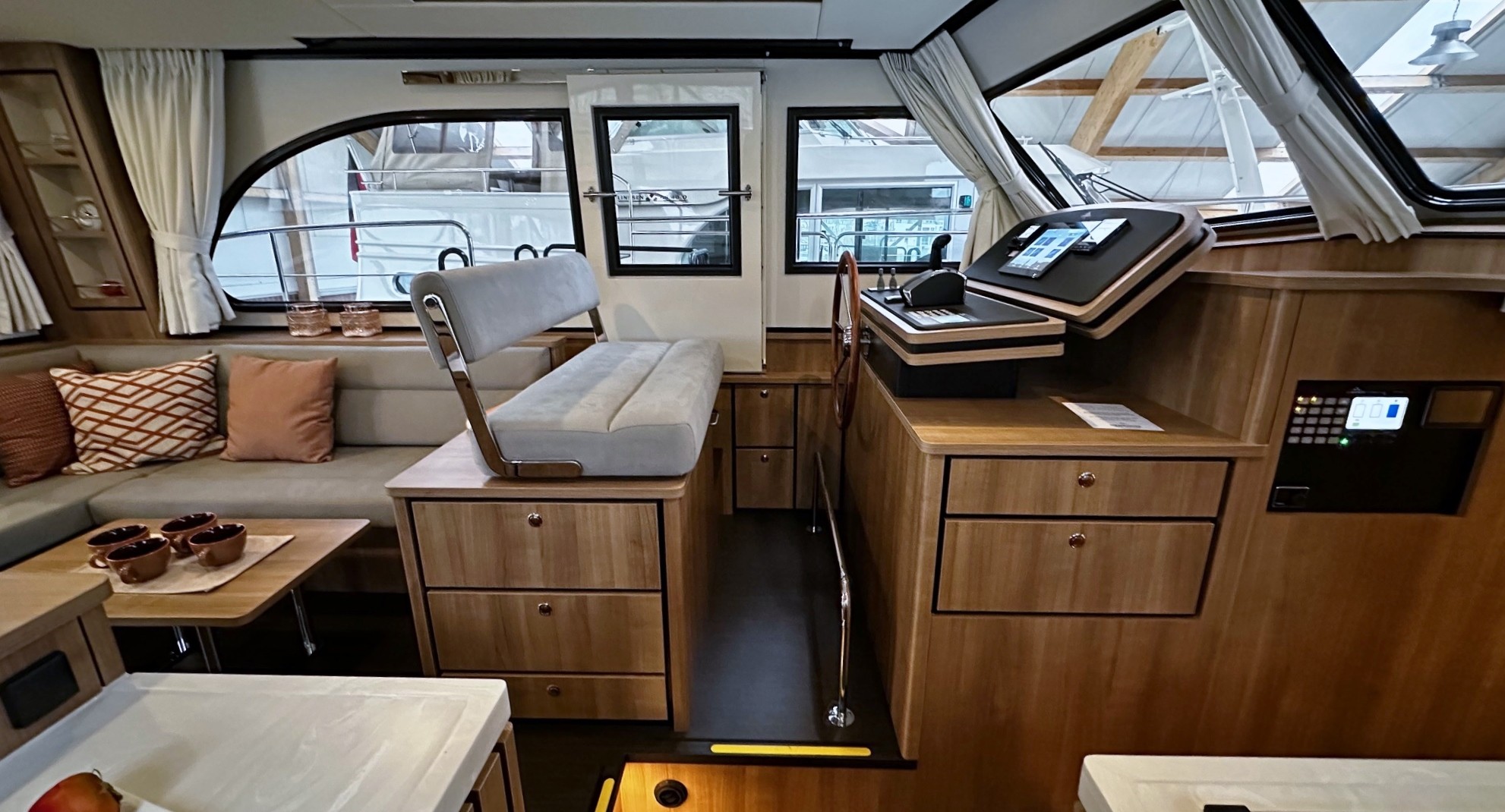

42061.01 Steering position with steering bench adjustable in the direction of travel and laterally

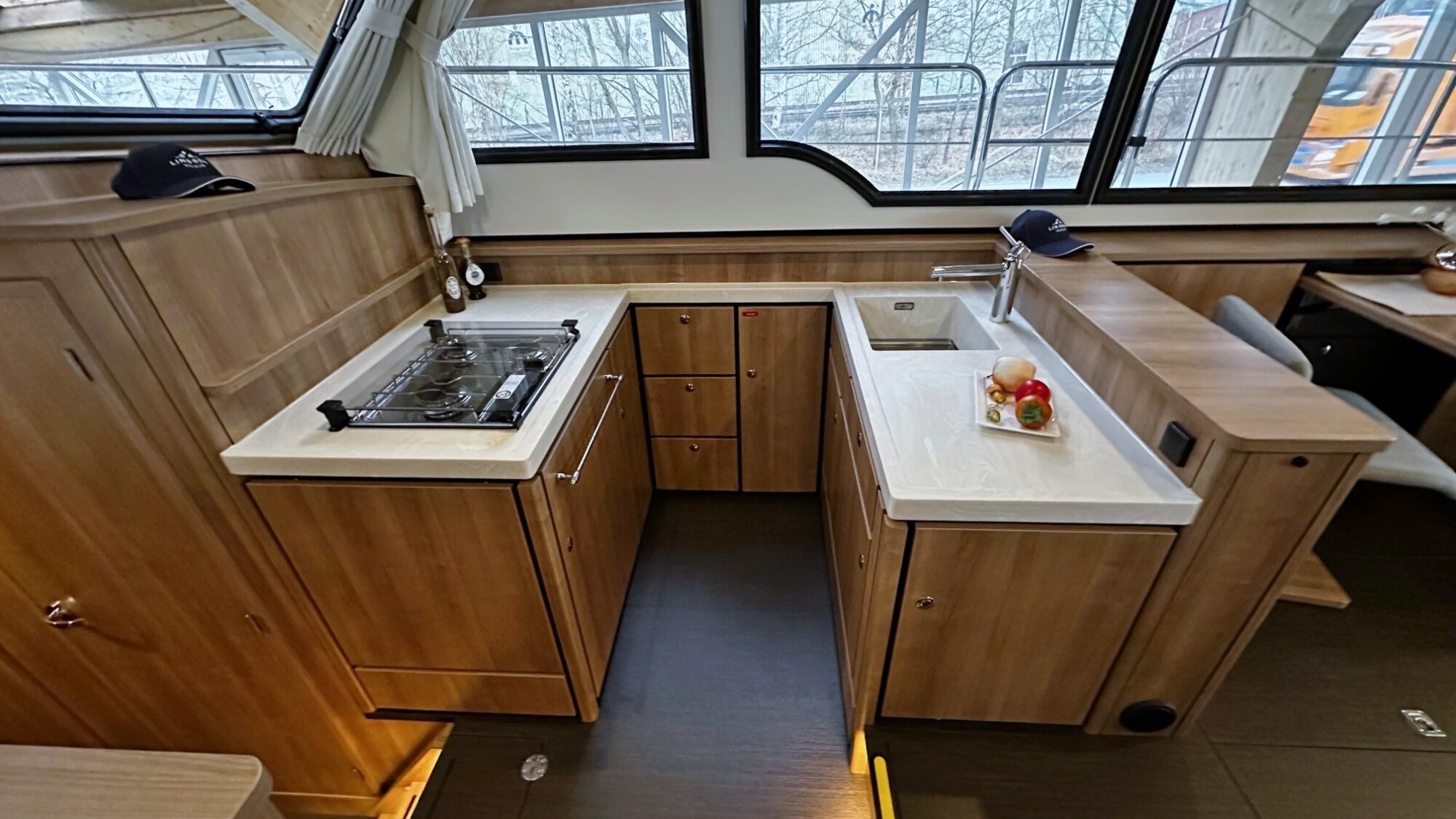

42081.01 U-shaped galley with cupboard space and drawers
42092.01 U-shaped work surface in the galley with original Corian® “Nimbus Prima”
42099.99 Additional work surface in the galley with cherry wood folding section next to the hob
42141.01 Functional storage space in the foredeck with automatic light switch
42414.01 Wall panels in the saloon SB, BB and front in cream white HPL.
4.3.1 FRONT CABIN AND MID-CABIN

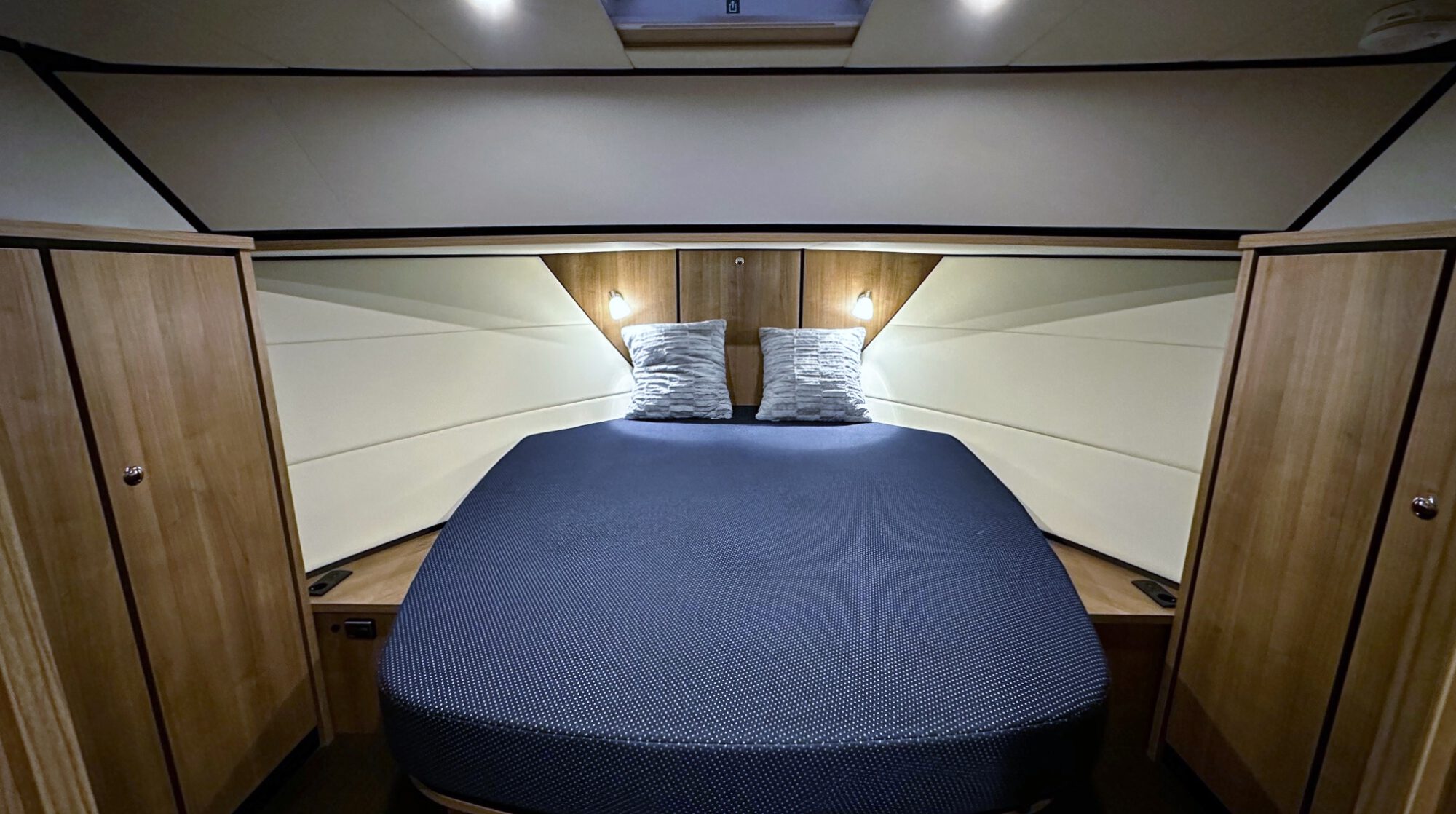

43021.01 Free-standing double bed with slatted frame and 2 drawers

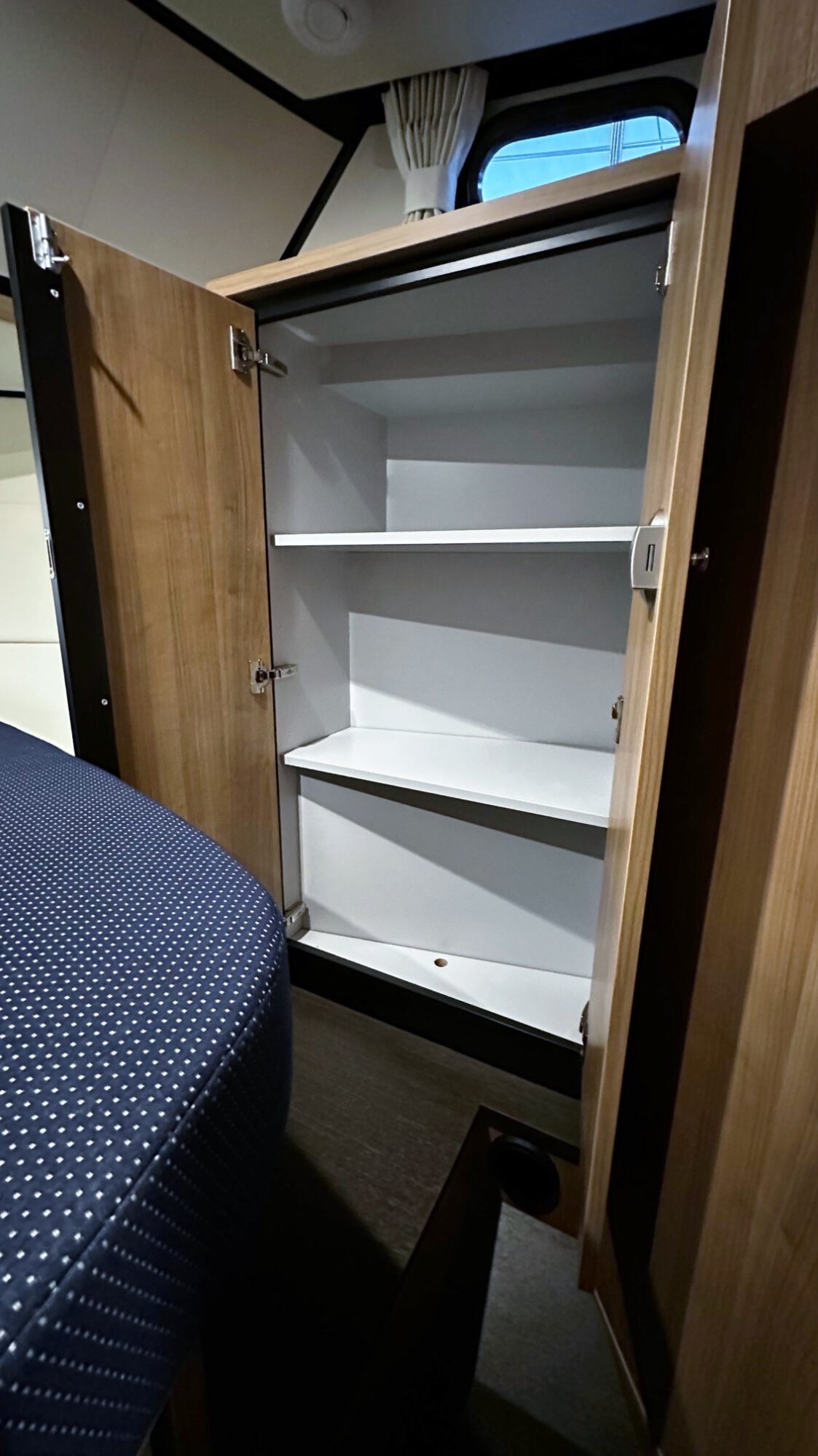

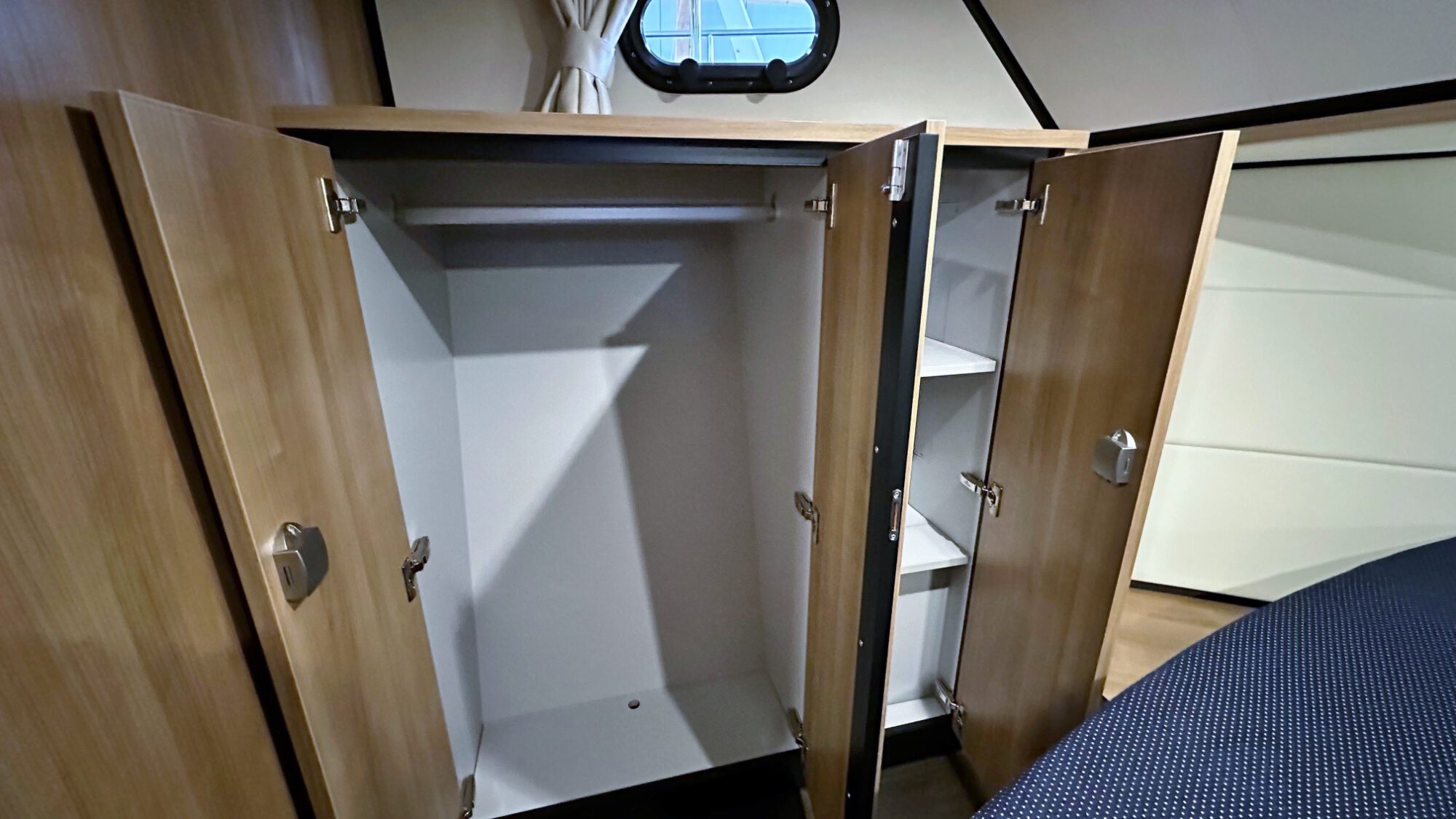

43031.01 Spacious combined wall cupboard/linen cupboard on BB side
43041.02 Spacious linen cupboard on SB side

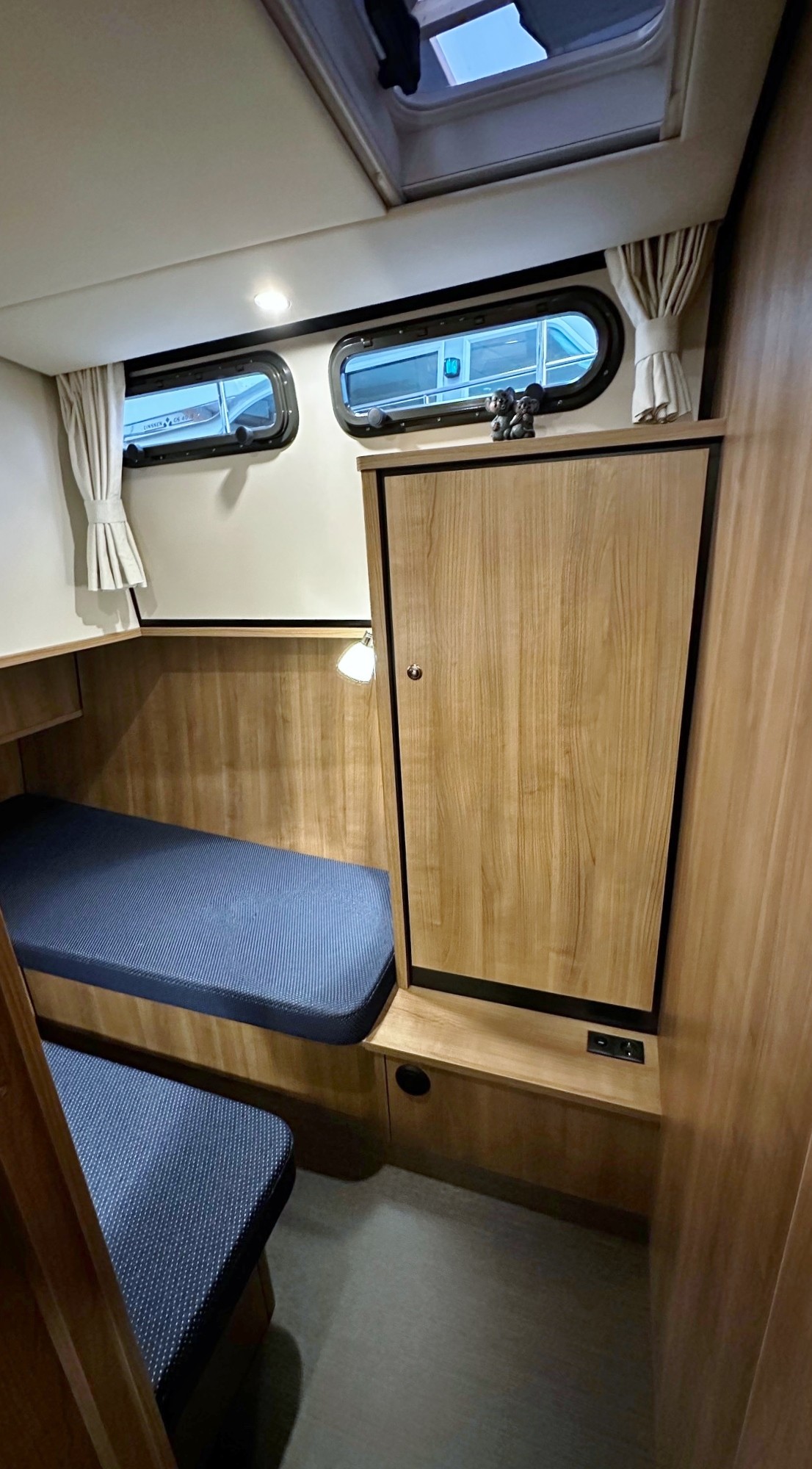

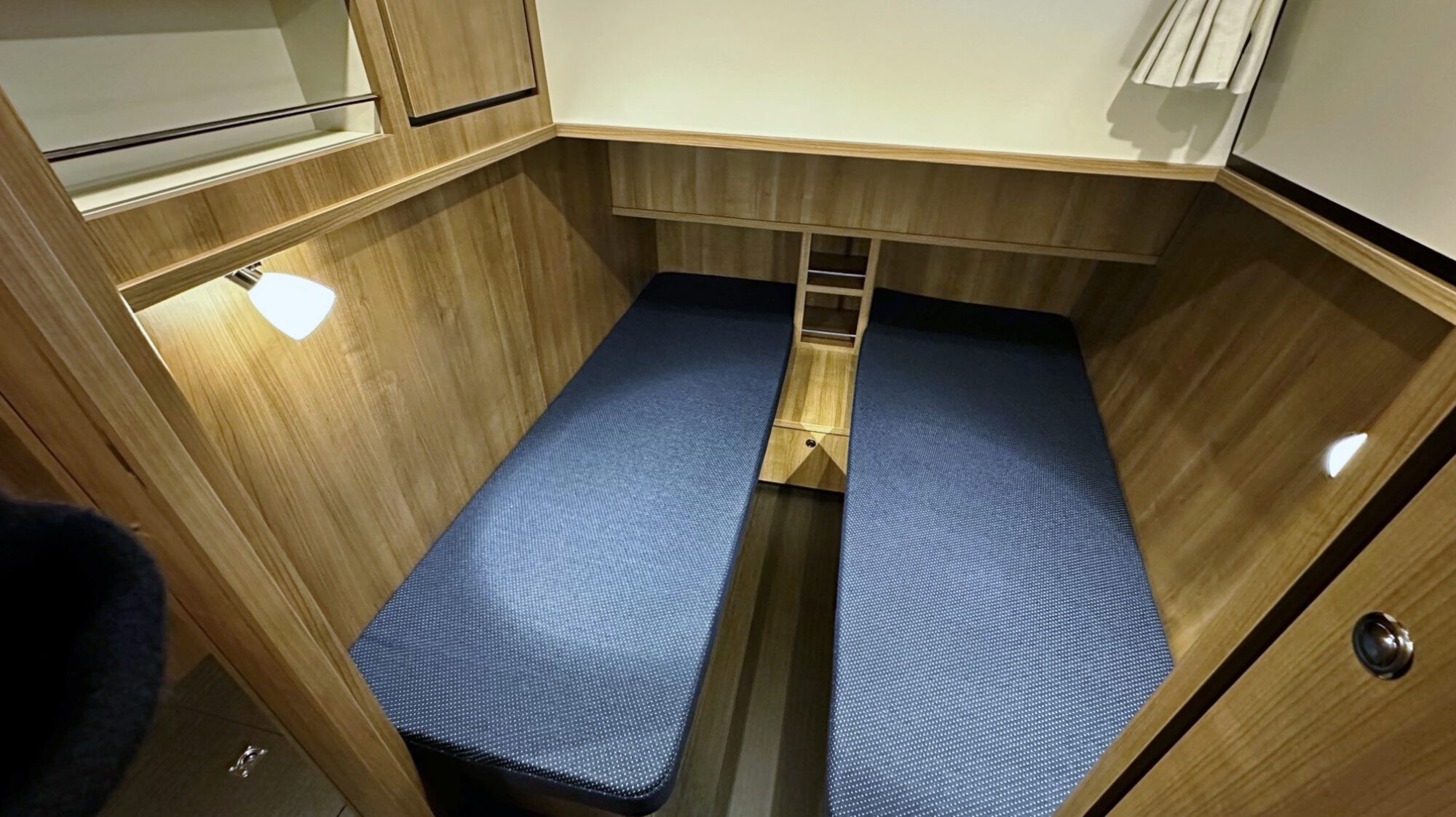

43101.01 Two single beds in mid-cabin incl. drawer under SB bed

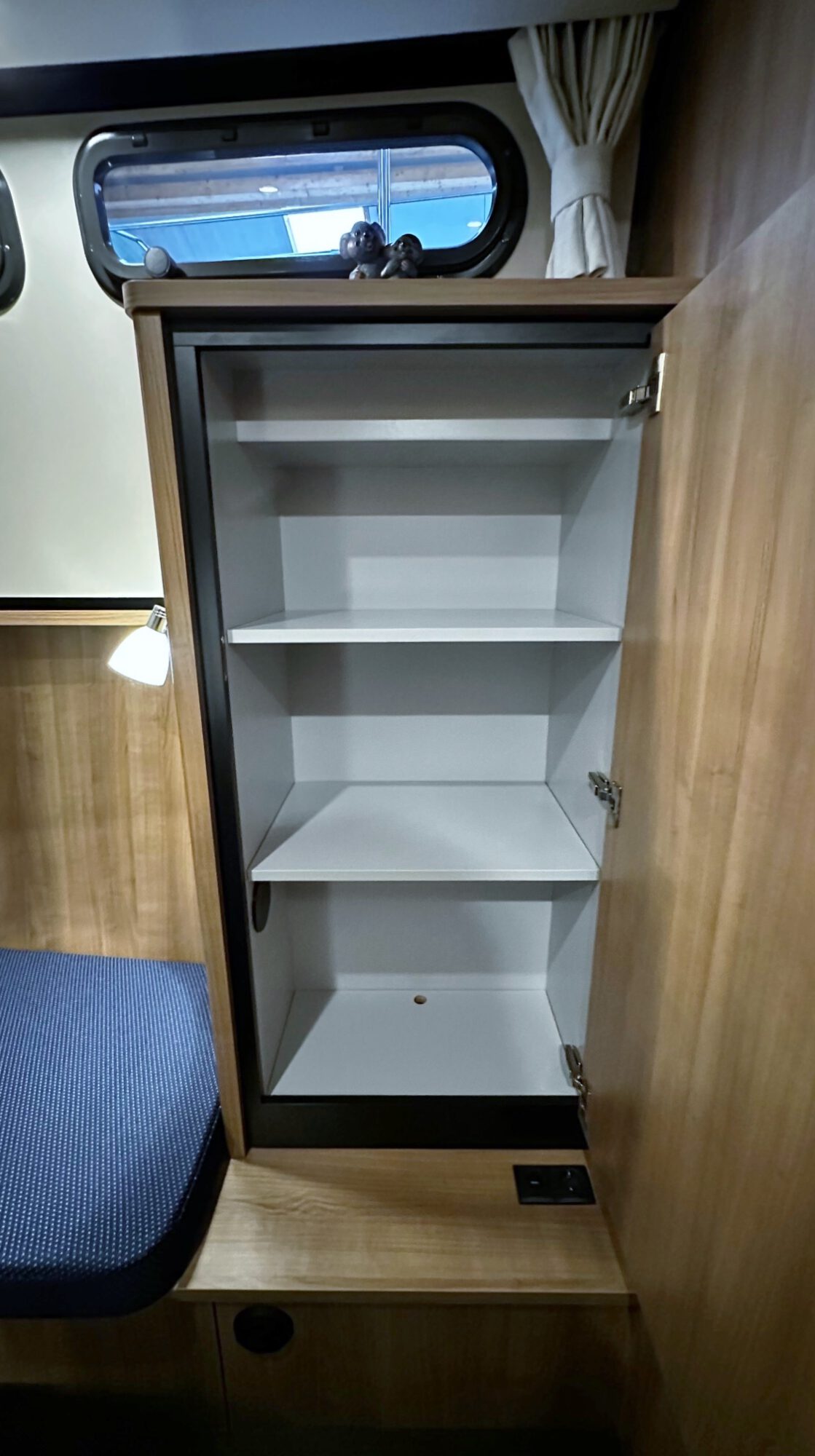

43121.01 Spacious linen cupboard in mid-cabin
43111.01 Small cupboard between beds in mid-cabin
43412.02 Upholstered wall paneling in the VK in longitudinal direction SB/BB (4 panels)

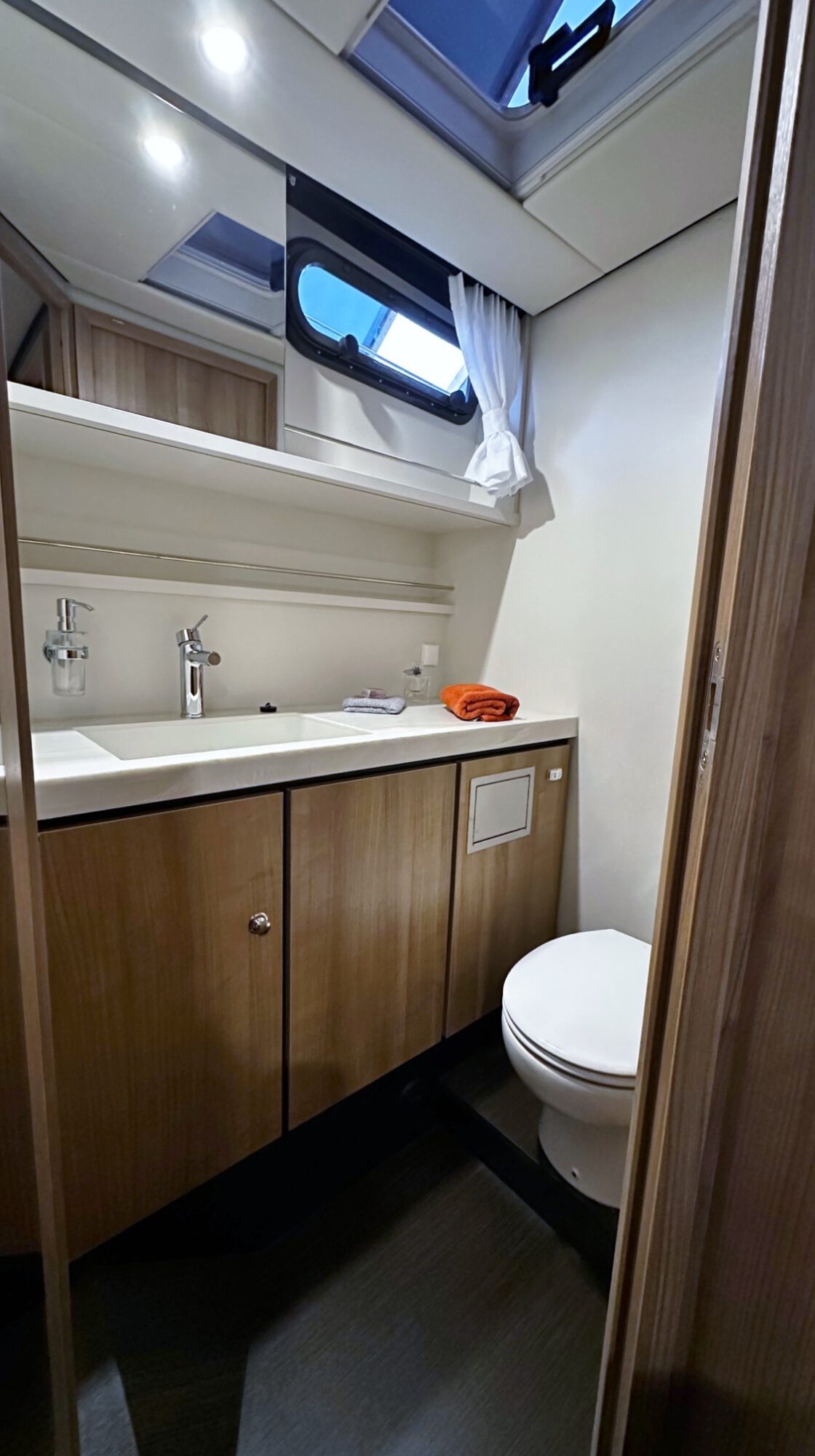

4.3.2 SHOWER ROOM AND TOILET ROOM
43062.01 The walls of the toilet room in HPL finish
43071.02 Washbasin in the toilet room VK built into the bathroom cabinet. Worksheet and
Washbasin finished in original Corian® “Nimbus Prima”

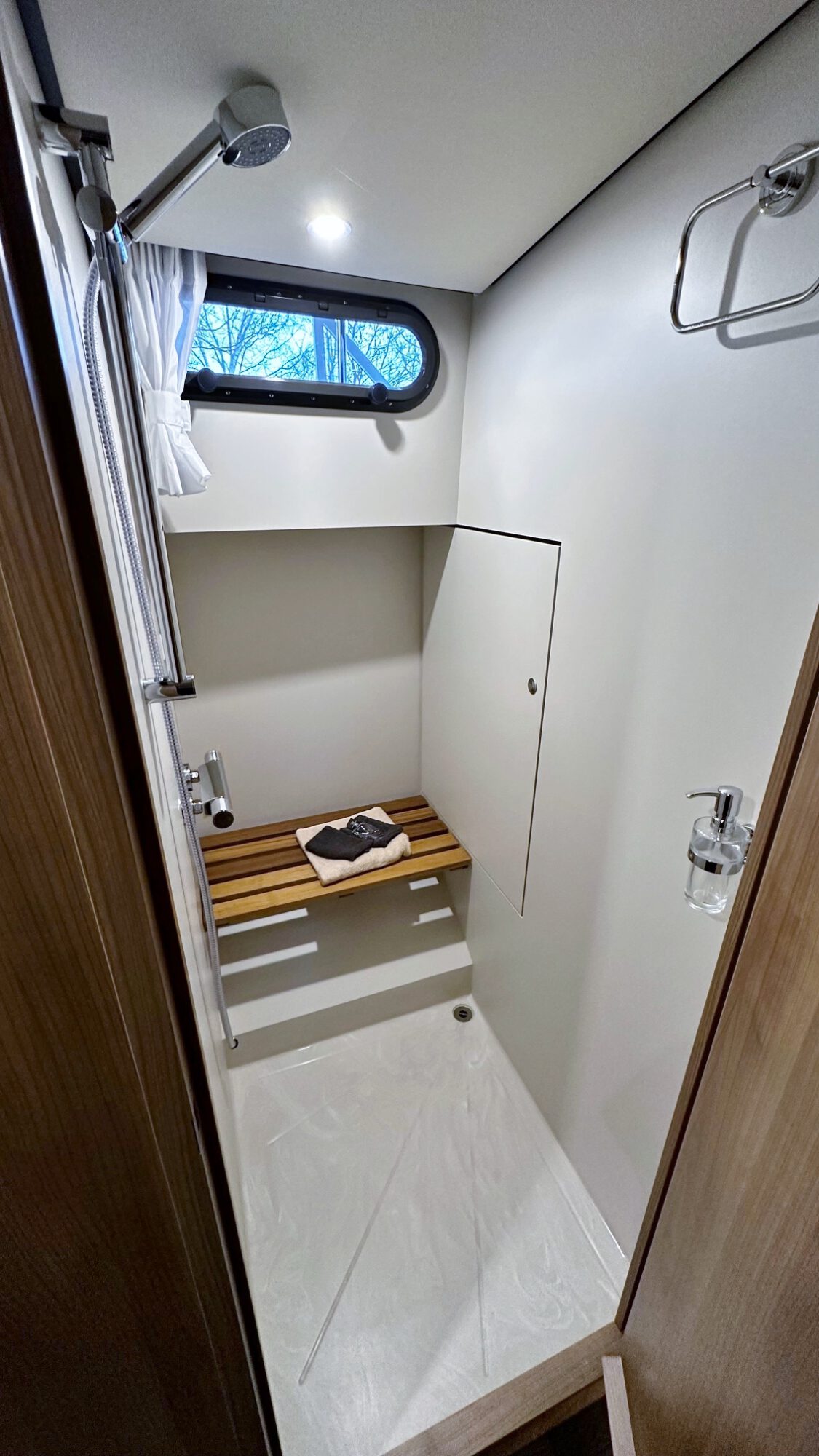

43082.01 Shower in the VK finished in HPL finish
43082.91 Shower trays finished in Corian type Nimbus Prima with grooves for water drainage,
without skirting boards
43081.11 Storage space in the VK shower, suitable for possible installation of washing machine/
dryer
5. FINISHING
5.1 LIGHTING & PLUGS
51010.05 LED low beam interior lighting in all rooms with switch on lighting
51080.11 Luxury LED reading lights (2x) in the forward cabin

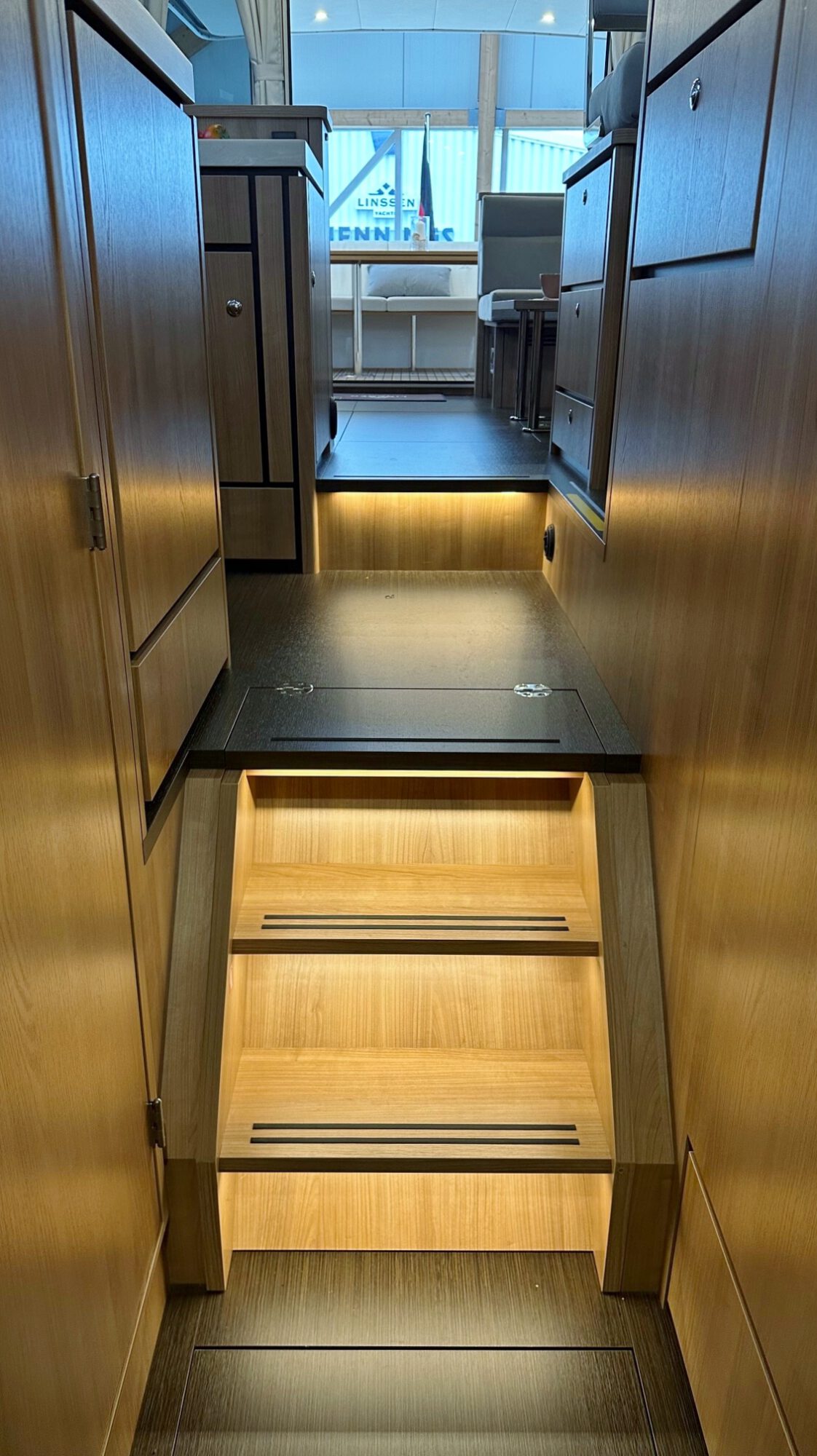

51110.05 Indirect lighting in the step to the galley
51400.01 1x USB port in the saloon for charging mobile devices. No data transmission.
51500.00 1 x 12 V. Socket at the helm
51605.01 5x 230 V. Sockets, in the VK (1x), toilet VK (1x), saloon folding table (1x) and
galley (1x double)
5.2 PANTRY

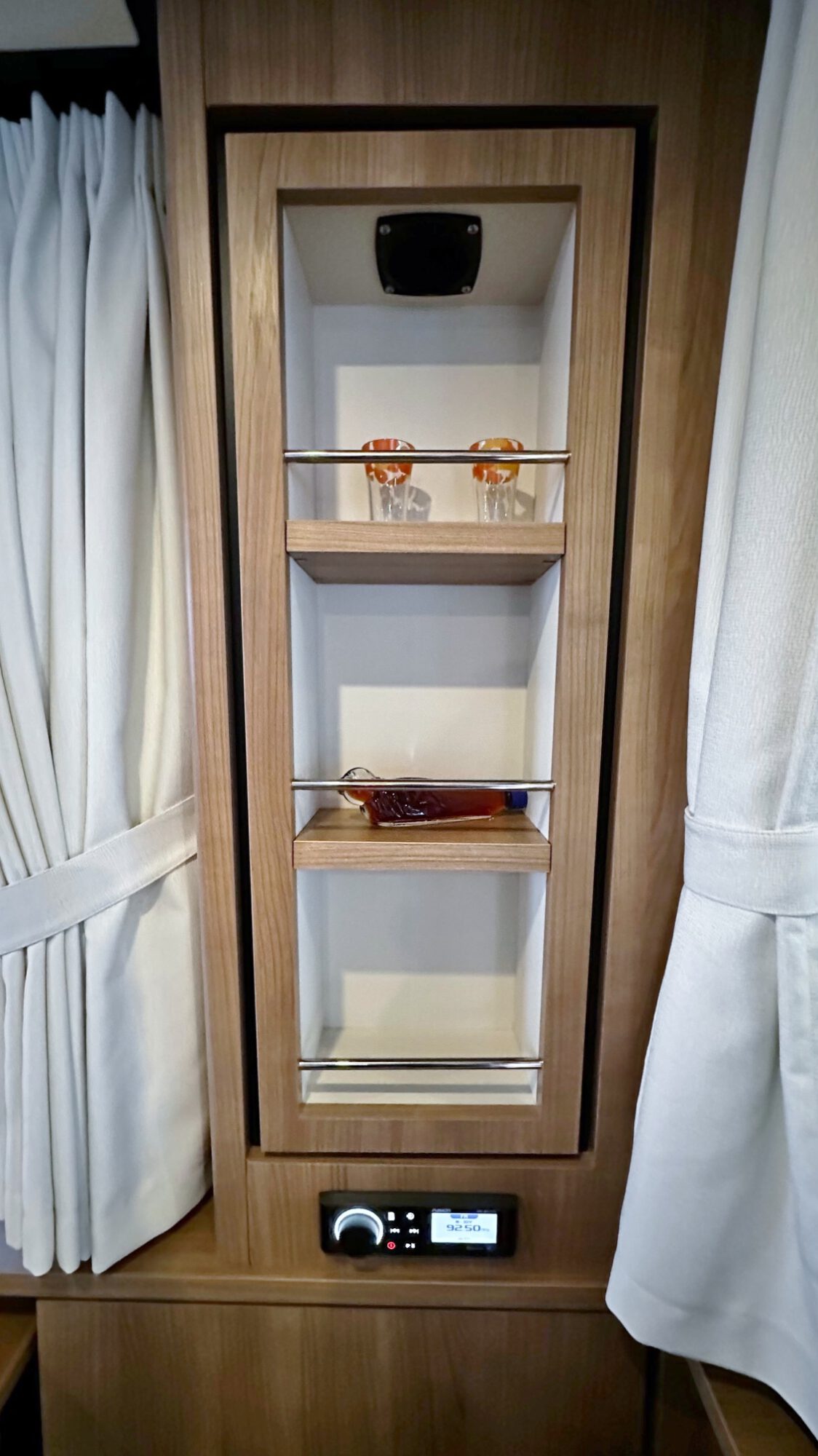

52015.01 Bar cabinet in saloon incl. Linssen Yachts Glass set consisting of: 6 shot glasses,
6 long drink glasses, 6 whisky glasses and 6 wine glasses
52020.01 Integrated waste garbage can in cupboard
52025.01 Anti-slip mats in galley drawers
52030.01 Cutlery tray in drawer
52040.02 110 l. refrigerator with freezer compartment in galley 52105.02 Gas installation with Campingaz gas bottle 3 kg in container on bathing platform 52110.02 Three-burner stainless steel gas cooker with freezer compartment in galley 52110.02 Refrigerator with freezer compartment in galley
52105.02 Gas installation with Campingaz gas bottle 3 kg in container on bathing platform
52110.02 Three-burner stainless steel gas stove
52120.02 Glass cover plate over 3-burner gas stove
52180.01 Stainless steel sink
53020.03 Galley mixer tap type Grohe Essence
5.3 SANITARY
53010.01 Equipment with sanitary accessories (mirror, paper holder, etc.) in the VK wet room
53030.03 Washbasin mixer tap toilet room VK type Grohe Essence
53050.04 VK shower mixer tap type Grohe 1000C (thermostatically adjustable) including shower head, toilet and washbasin, incl. shower head. Shower bar
53130.02 Electric toilet in the forward cabin with on-board flushing
5.4 AUDIO / VIDEO
54010.02 Stereo radio/MP3 player Fusion RA70N with Bluetooth including 2 speakers in the saloon and
FM radio antenna in the mast.
Audio streaming possible
Operation possible via the FUSION Link app
AM/FM including RDS
Amplifier Class-AB 4x 50W
5.6 INTERIOR Upholstery
56031.06 L-shaped saloon bench equipped in Mocka Rock
56045.06 Comfortable helm bench with Mocka Rock upholstery
56073.26 2x design stools in Mocka Rock
56101.11 Mattress 1x 2 pers. in front cabin type cold foam 14 cm. with foam layer in two
hardnesses.
56161.01 Mattress 2x 1 pers. in middle cabin type cold foam 10 cm. with foam layer in two
hardnesses.
56300.01 Elegant curtains for windows and hatches salon and VK, color cream
5.7 EXTERIOR UPHOLSTERY
57030.06 Cushion set for cockpit bench in imitation leather, Maglia Uyuni
5.8 EQUIPMENT
58010.01 Border set parts package with tool set, impeller, fuses, touch-up pencils and various other parts.
Maintenance resources

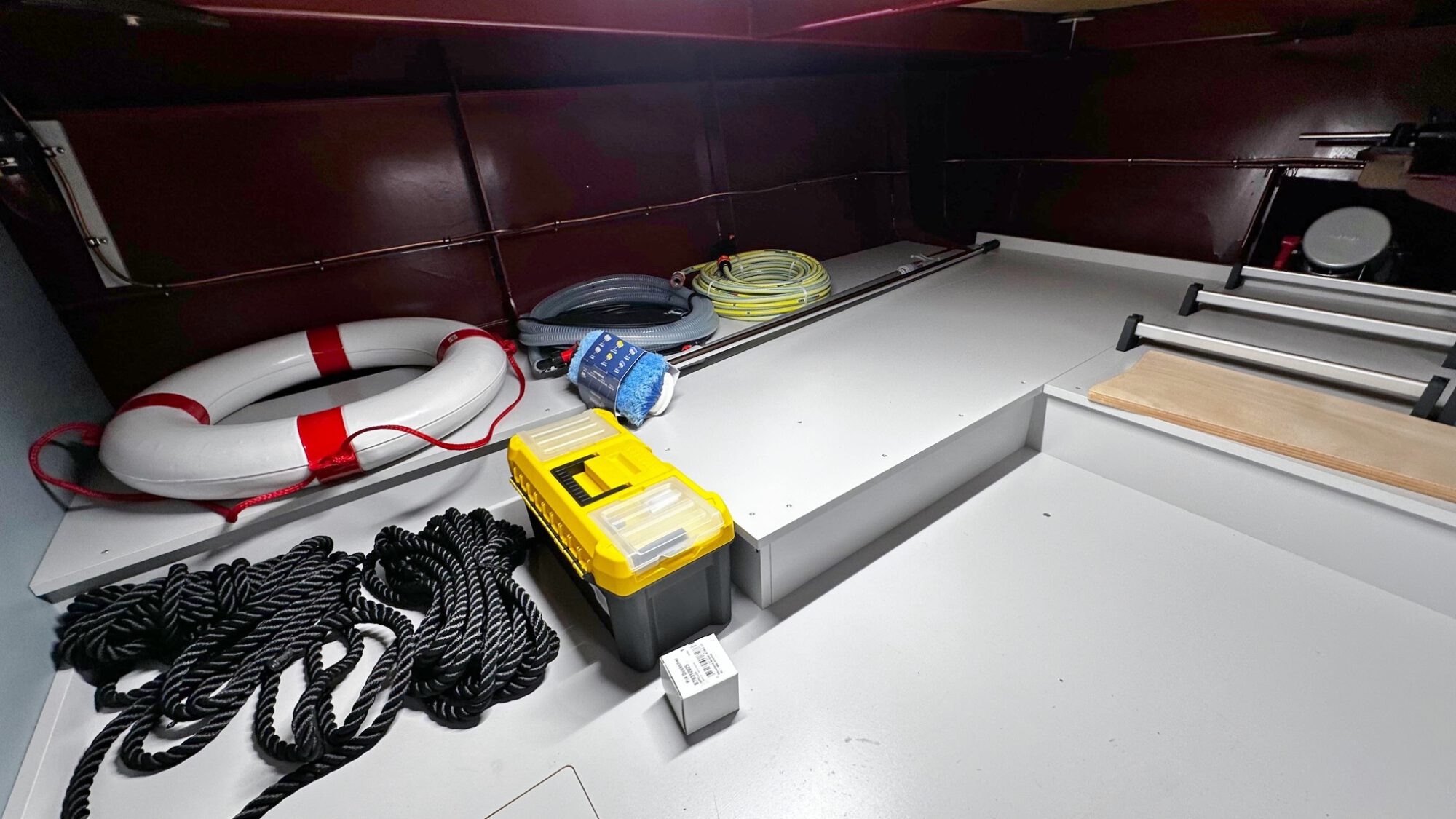

58020.01 Complete sailing equipment consisting of 6 fenders, 4 mooring lines (10 meters), boat hook,
Lifebuoy, bailer, scrubbing brush, national flag, shipyard pennant, safety line for anchor chain and
Anchor ball
58030.01 First aid kit in saloon in accordance with DIN13157
58040.01 Fire extinguisher (2x 2 kg) 1x in saloon bench, 1x in “cellar room” according to fire class ABC
58045.01 Optical smoke detector with permanently installed lithium battery (service life 10 years) in all
sleeping cabins
5.9 COVERINGS & CARPANTS
59020.14 Cockpit cover Longtop, Sunbrella Marine Steel grey. The side and aft walls can
be opened separately with a zipper.
